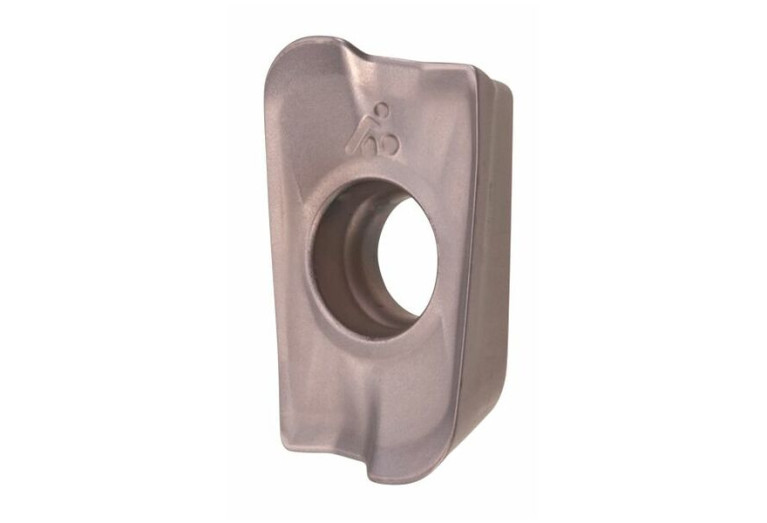

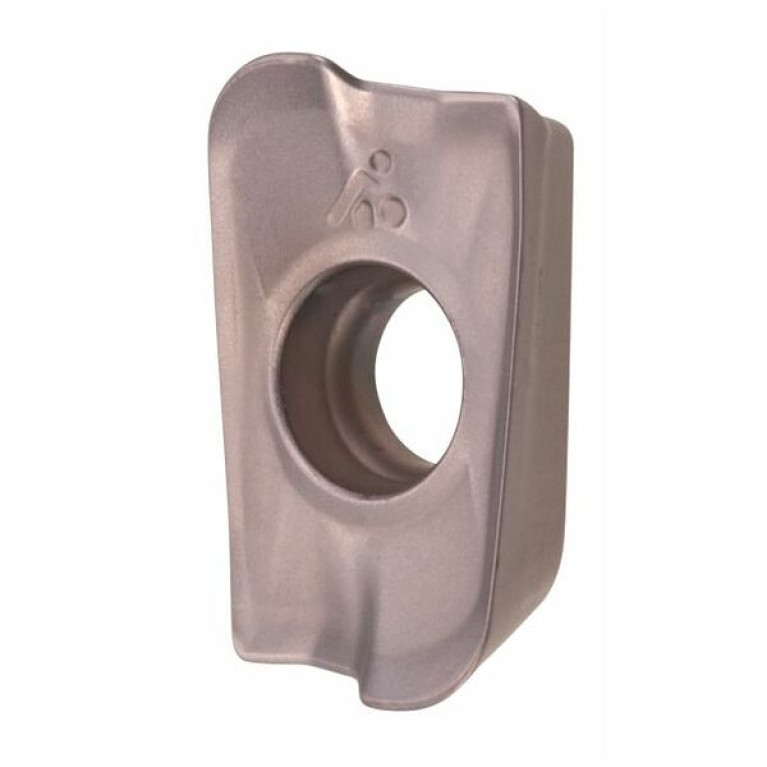

Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert 215388 UNI

215388 UNI

Артикул: 215388 UNI

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

ANN Clearance angle minor

11 Degree

AS Clearance angle wiper edge

0 Degree

BS Wiper edge length

1.05 mm

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiAlSiN super multi

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

AP1336203R

EPSR Insert included angle

82 Degree

FamilyProducts

APMT 133520 TR

GRDMFG Grade manufacturers designation

HB7520

IC Inscribed circle diameter

7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

12 mm

LE Cutting edge effective length

12 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AP1336203R

Name Identifying order number

215388 UNI

NOI Insert index count

RE Corner radius

2 mm

S Insert thickness

3.6 mm

S1 Insert thickness total

3.6 mm

STDDES Standard designation

APMT133520TR

TCE Tipped cutting edge code

TCINS Tolerance class insert

W1 Insert width

7 mm

Working process

No working processes available

WT Weight of item

0.002 kg
