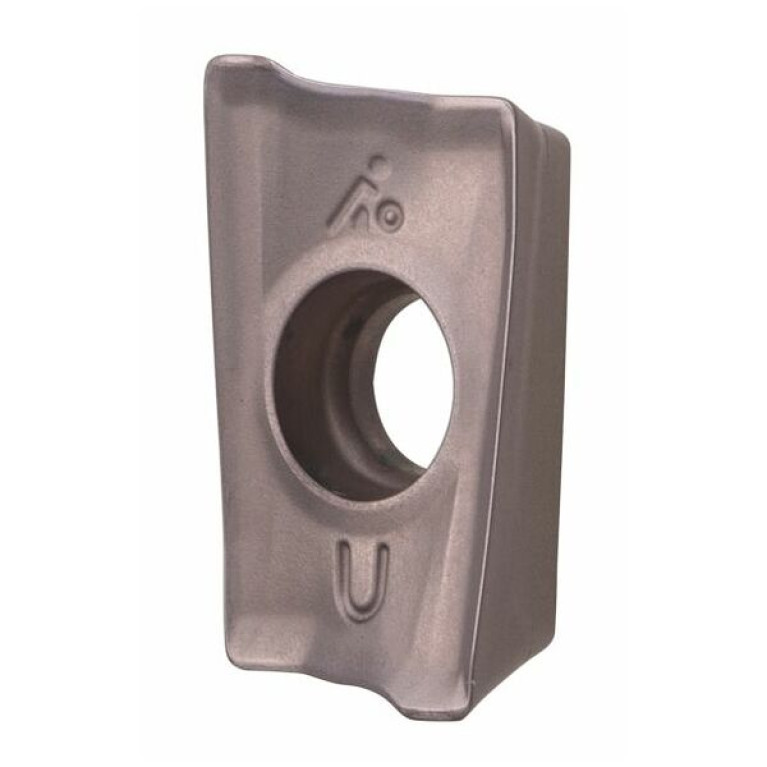

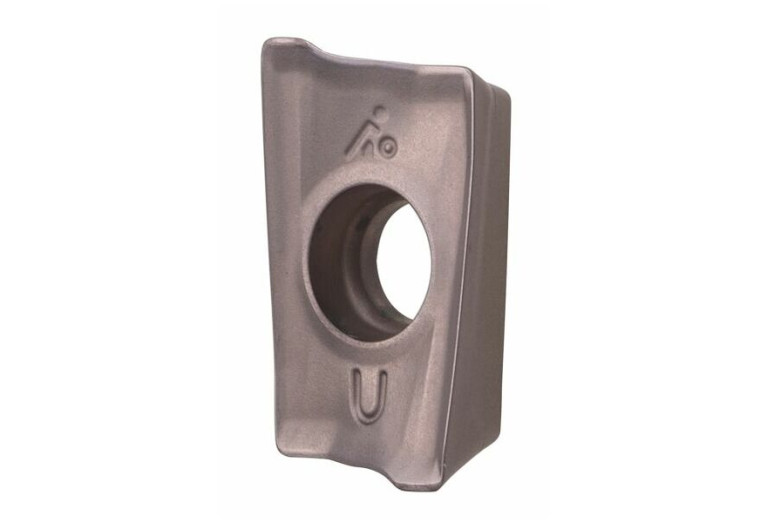

Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert 215374 UNI

215374 UNI

Артикул: 215374 UNI

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

BS Wiper edge length

1.05 mm

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

AP1335043R

EPSR Insert included angle

82 Degree

FamilyProducts

APMT 133504 TR

GRDMFG Grade manufacturers designation

HB7520

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

12 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AP1335043R

Name Identifying order number

215374 UNI

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

3.6 mm

S1 Insert thickness total

3.6 mm

STDDES Standard designation

APMT133504

TCE Tipped cutting edge code

TCINS Tolerance class insert

W1 Insert width

7 mm

Working process

No working processes available

WT Weight of item

0.0023 kg
