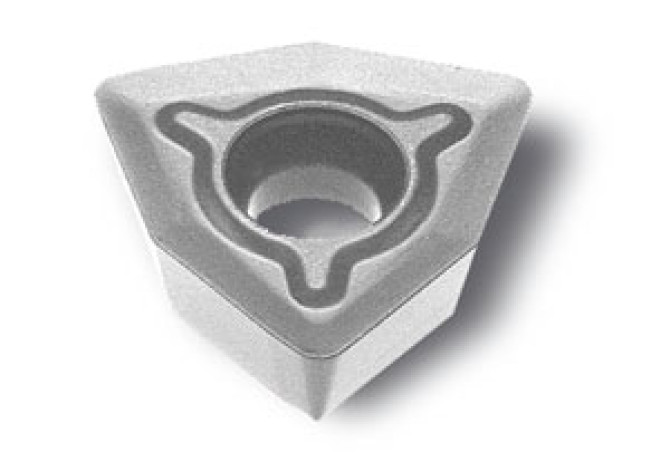

WPHT 0603PDSR-31 H216T

Артикул: WPHT 0603PDSR-31 H216T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

2 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.4 mm

DIN

WP0603PD3R

EPSR Insert included angle

86 Degree

FamilyProducts

carbide milling insert

GRD2ND Standard designation of the grade 2nd application

HW-N15

GRDMFG Grade manufacturers designation

H216T

GRDPRIO Standard designation of the grade main application

HW-K15

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WP0603PD3R

Name Identifying order number

WPHT 0603PDSR-31 H216T

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

WPHT0603PDSR

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling
