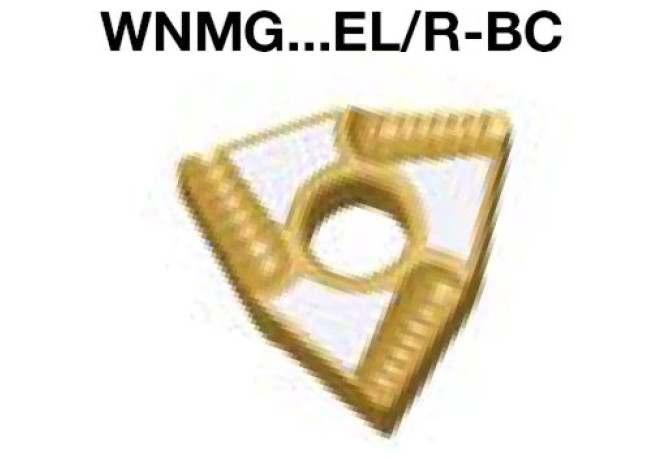

WNMG080404ER-BC LC225K

Артикул: WNMG080404ER-BC LC225K

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

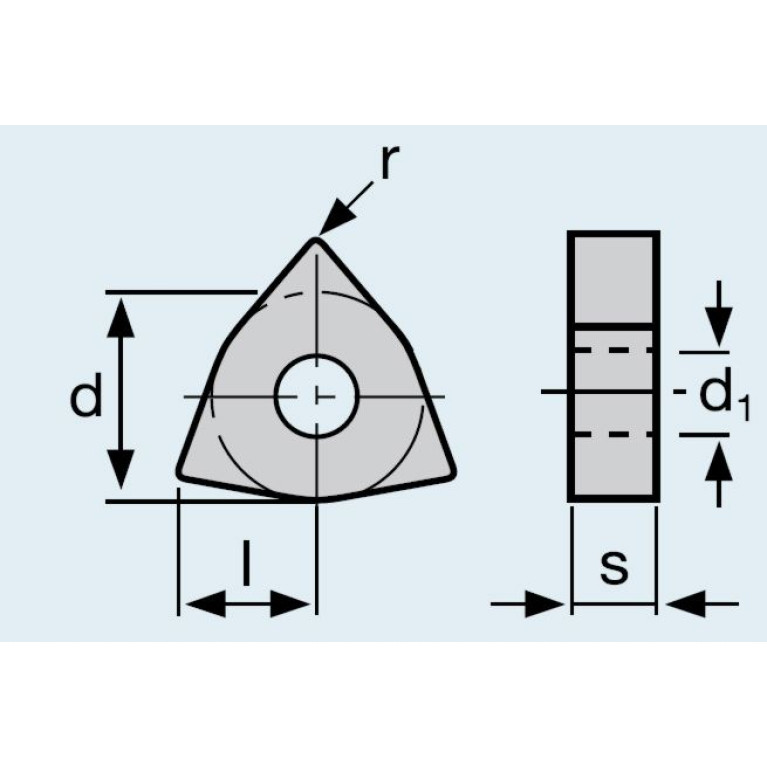

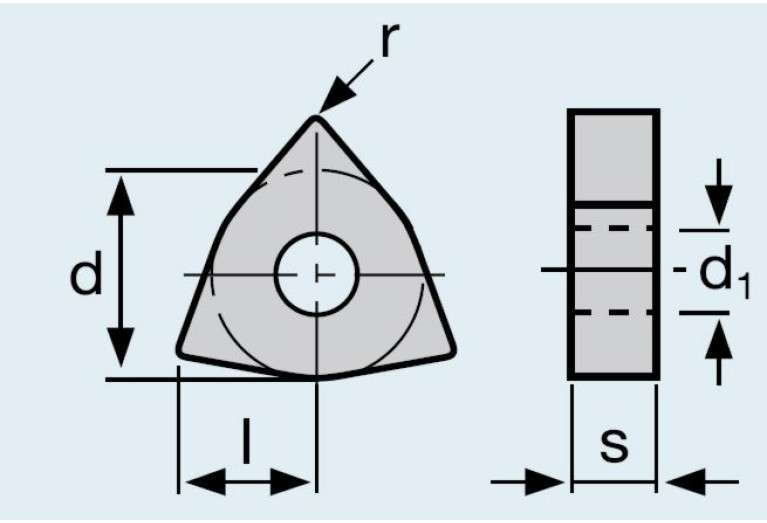

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

7/1/2012

DIN

WN0804 2R

EPSR Insert included angle

80 Degree

FamilyProducts

80° Triangular insert

GRD2ND Standard designation of the grade 2nd application

HC-M25

GRDMFG Grade manufacturers designation

LC225K

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

12.7 mm

ID Technical product number

WNMG080404ER-BC LC225K

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804 2R

Materials

P,M

Name Identifying order number

WNMG080404ER-BC LC225K

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG080404ER

STDDESAnsi Standard designation ANSI

WNMG431ER

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning
