Главная Каталог продукции Toolunited 15 201-07 - Trigon insert WNMG060408-FMP LC225K

WNMG060408-FMP LC225K

Артикул: 6411017

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

FMP

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

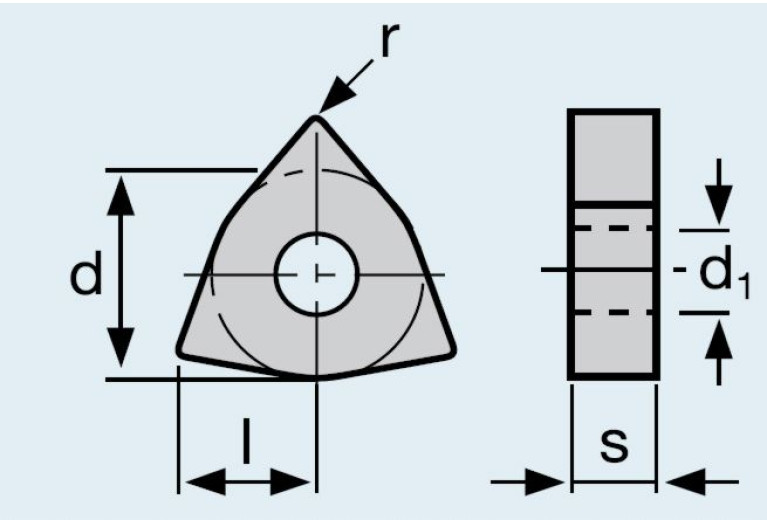

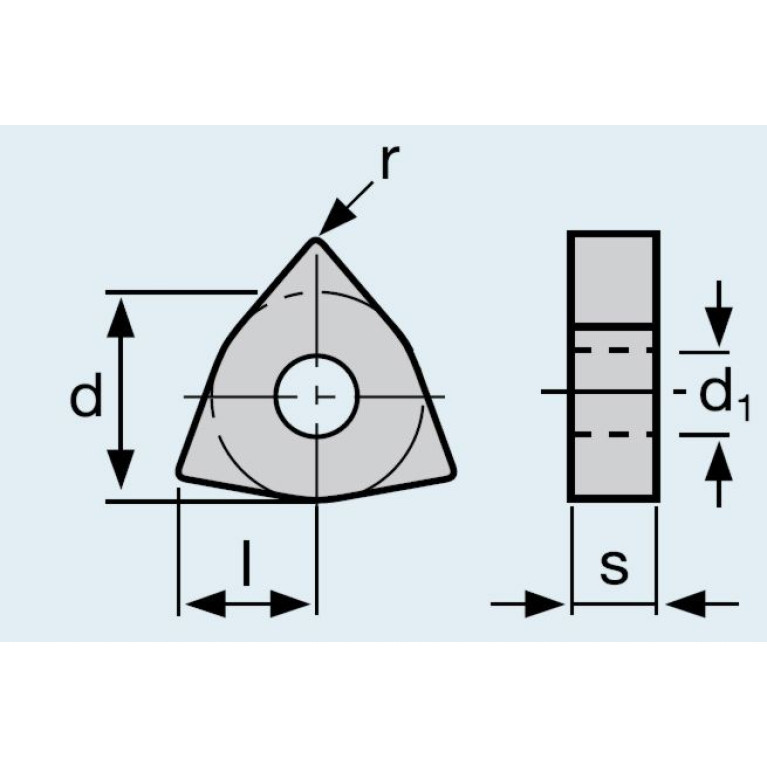

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

8/24/2012

DIN

WN0604 2N

EPSR Insert included angle

80 Degree

FamilyProducts

80° Triangular insert

GRD2ND Standard designation of the grade 2nd application

HC-M25

GRDMFG Grade manufacturers designation

LC225K

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6411017

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0604 2N

Name Identifying order number

WNMG060408-FMP LC225K

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG060408

STDDESAnsi Standard designation ANSI

WNMG332

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning
