Главная Каталог продукции Toolunited 15 201-07 - Trigon insert WNMG 080408EN-TFQ CTCP125

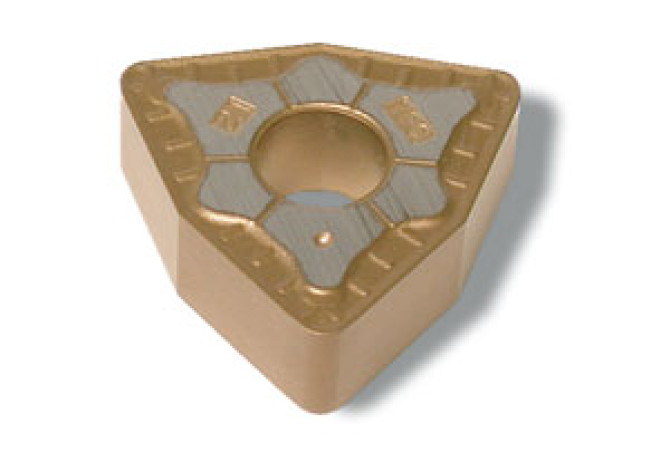

WNMG 080408EN-TFQ CTCP125

Артикул: 11544188

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

TFQ

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN+Al2O3

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

DIN

WN0804082N

EPSR Insert included angle

80 Degree

FamilyProducts

Cermet turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M20

GRD3RD Standard designation of the grade 3rd application

HC-K30

GRDMFG Grade manufacturers designation

CTCP125

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

12.7 mm

ID Technical product number

11544188

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.69 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804082N

Materials

P,M,K

Name Identifying order number

WNMG 080408EN-TFQ CTCP125

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG080408EN

STDDESAnsi Standard designation ANSI

WNMG432EN

TCINS Tolerance class insert

Working process

No working processes available
