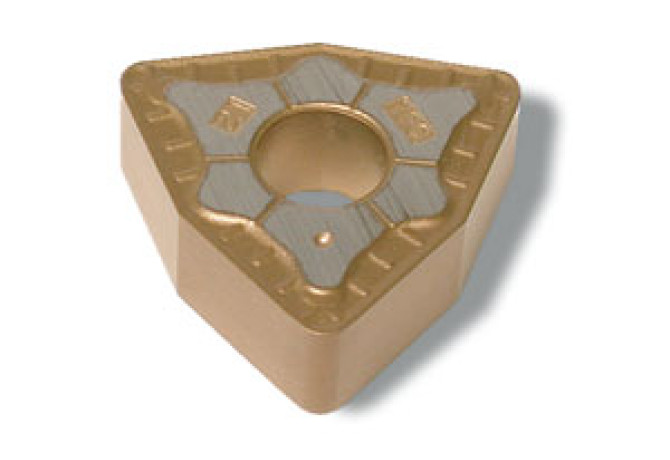

WNMG 080404EN-TFQ CTC1110

Артикул: WNMG 080404EN-TFQ CTC1110

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

TFQ

CECC Cutting edge condition code

E - Rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

DIN

WN0804042N

EPSR Insert included angle

80 Degree

FamilyProducts

carbide turning insert (GM507 optimized)

GRD2ND Standard designation of the grade 2nd application

HC-M10

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

CTC1110

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.69 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804042N

Materials

P,M,K

Name Identifying order number

WNMG 080404EN-TFQ CTC1110

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG080404EN

STDDESAnsi Standard designation ANSI

WNMG431EN

TCINS Tolerance class insert

Working process

No working processes available
