Главная Каталог продукции Toolunited 15 201-07 - Trigon insert WNMG 060408EN-TFQ TCC410

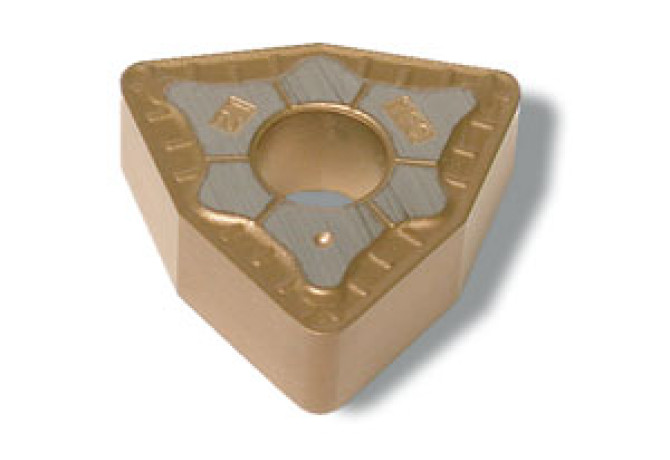

WNMG 060408EN-TFQ TCC410

Артикул: WNMG 060408EN-TFQ TCC410

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

TFQ

CECC Cutting edge condition code

E - Rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

DIN

WN0604082N

EPSR Insert included angle

80 Degree

FamilyProducts

Cermet turning insert

GRD2ND Standard designation of the grade 2nd application

HT-M10

GRD3RD Standard designation of the grade 3rd application

HT-K05

GRDMFG Grade manufacturers designation

TCC410

GRDPRIO Standard designation of the grade main application

HT-P10

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0604082N

Materials

P,M,K

Name Identifying order number

WNMG 060408EN-TFQ TCC410

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG060408EN

STDDESAnsi Standard designation ANSI

WNMG332EN

TCINS Tolerance class insert

Working process

No working processes available
