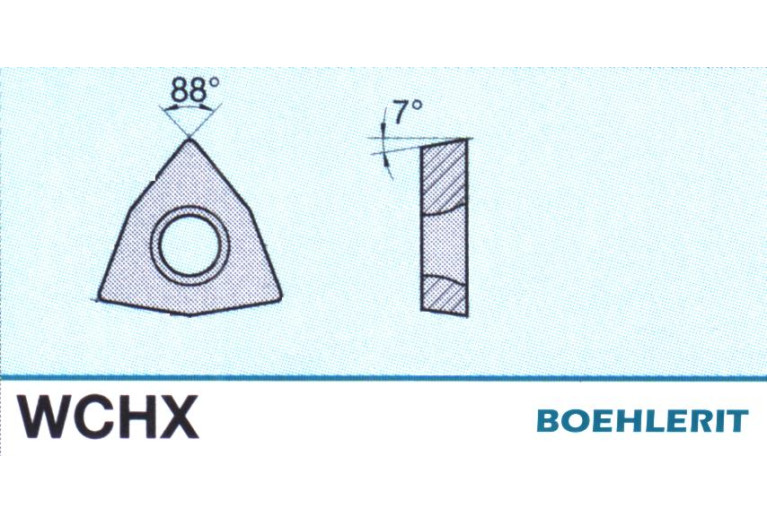

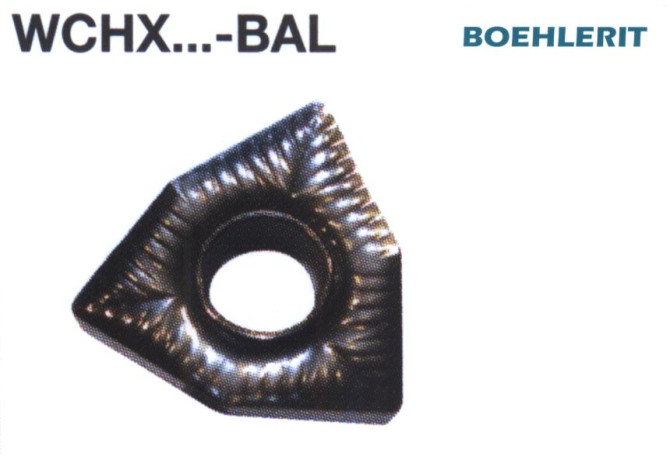

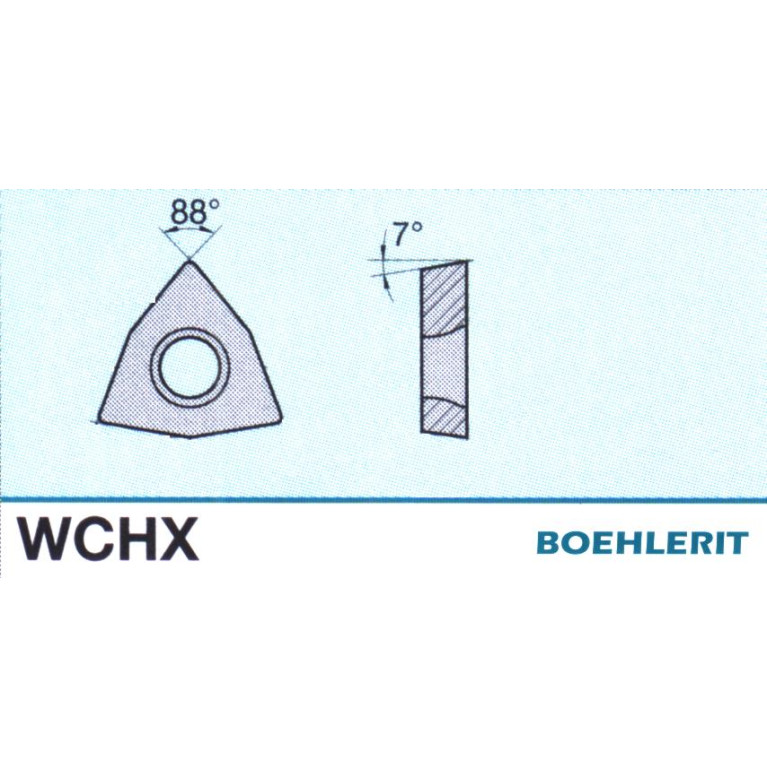

WCHX170608FN-BAL LW610

Артикул: 6407977

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

BAL

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7 mm

Delivery state valid from

2/1/2009

DIN

WC1706 7N

EPSR Insert included angle

80 Degree

FamilyProducts

indexable insert for drilling and turning

GRD2ND Standard designation of the grade 2nd application

HW-K10

GRDMFG Grade manufacturers designation

LW610

GRDPRIO Standard designation of the grade main application

HW-N15

IC Inscribed circle diameter

26.194 mm

ID Technical product number

6407977

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC1706 7N

Materials

K,N

Name Identifying order number

WCHX170608FN-BAL LW610

RE Corner radius

0.8 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

WCHX170608FN

STDDESAnsi Standard designation ANSI

WCHX842FN

TCINS Tolerance class insert

Working process

BVB - Drilling,DDI - Internal turning
