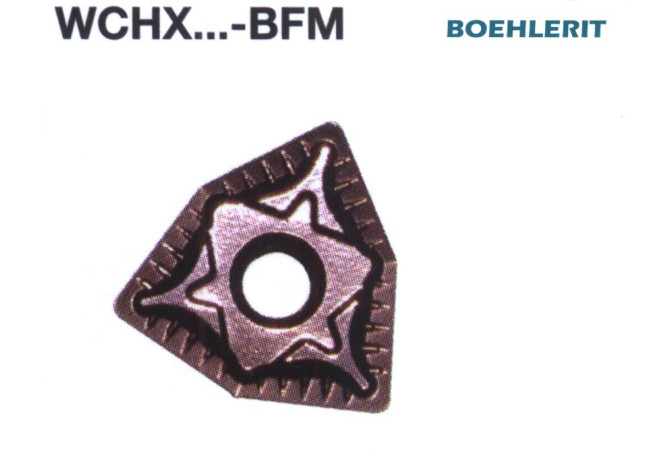

WCHX10T304EN-BFM LC444W

Артикул: 6400674

В наличии

В корзину

Описание

Характеристики

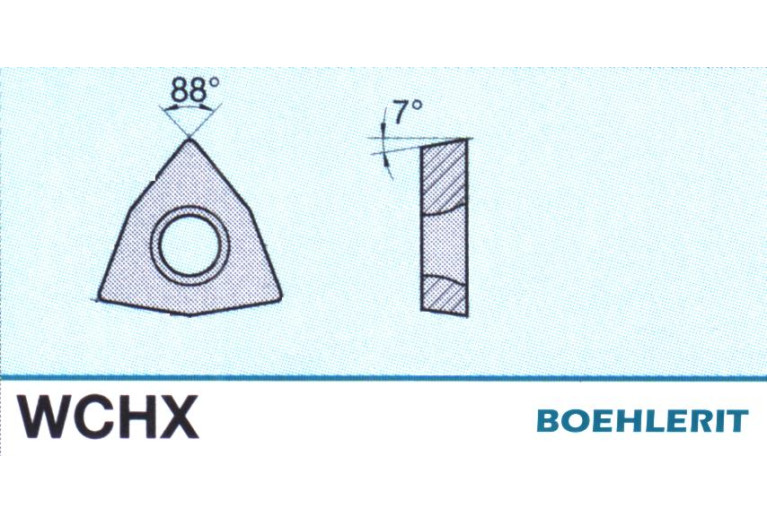

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

BFM

CECC Cutting edge condition code

E - Rounded

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.9 mm

Delivery state valid from

10/5/2005

DIN

WC10T3 7N

EPSR Insert included angle

88 Degree

FamilyProducts

indexable insert for drilling and turning

GRD2ND Standard designation of the grade 2nd application

HC-P35

GRDMFG Grade manufacturers designation

LC444W

GRDPRIO Standard designation of the grade main application

HC-M40

IC Inscribed circle diameter

15.875 mm

ID Technical product number

6400674

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

10 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC10T3 7N

Materials

P,M

Name Identifying order number

WCHX10T304EN-BFM LC444W

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

WCHX10T304EN

STDDESAnsi Standard designation ANSI

WCHX52.51EN

TCINS Tolerance class insert

Working process

BVB - Drilling,DDA - External turning,DDI - Internal turning
