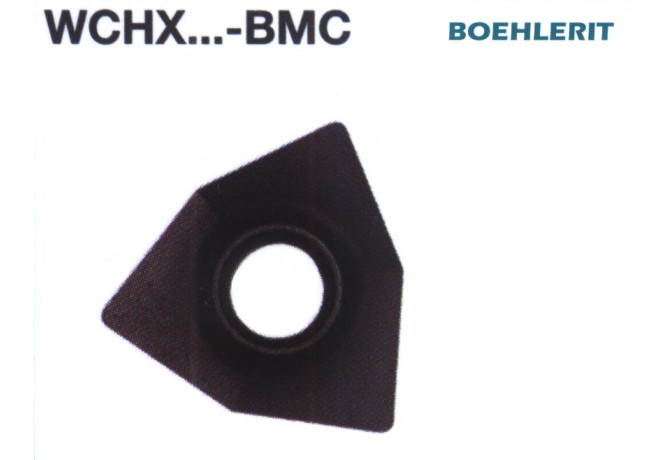

WCHX060204EN-BMC LC630T

Артикул: WCHX060204EN-BMC LC630T

В наличии

В корзину

Описание

Характеристики

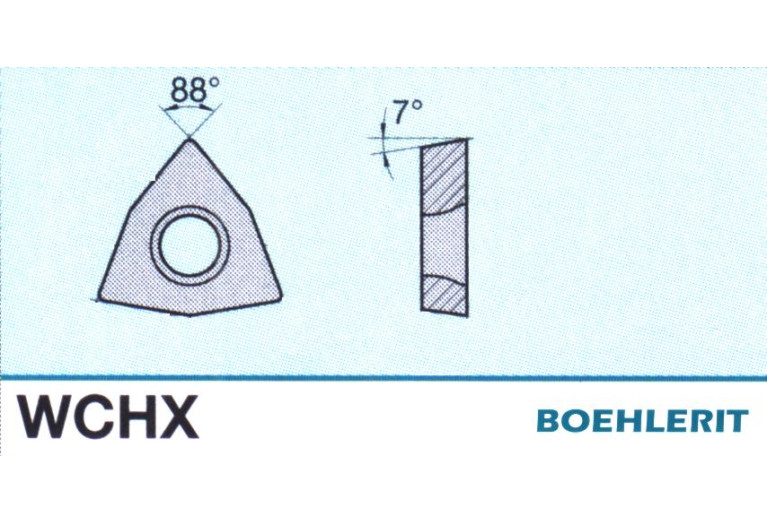

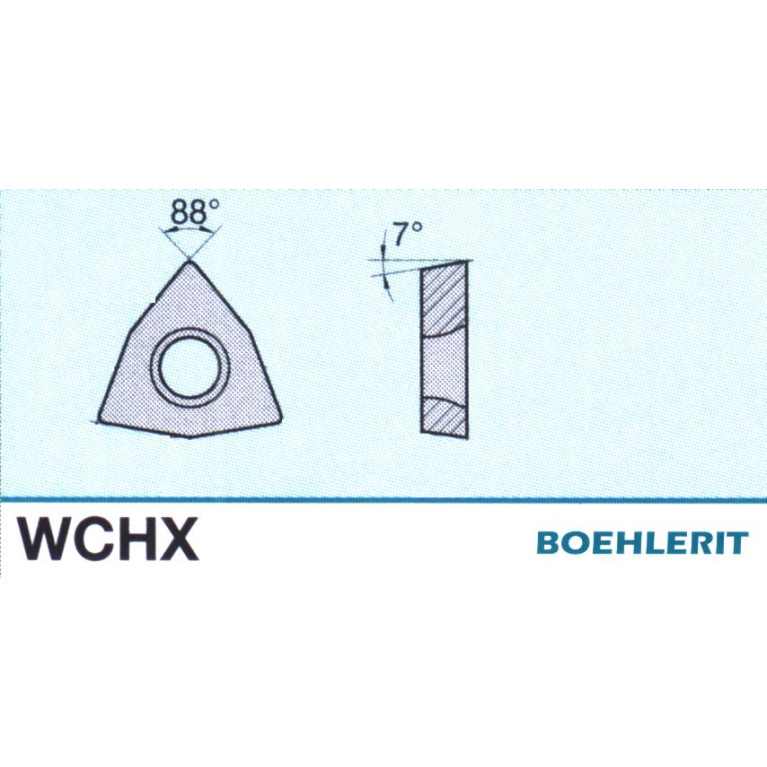

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

BMC

CECC Cutting edge condition code

E - Rounded

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

10/5/2005

DIN

WC0602 7N

EPSR Insert included angle

80 Degree

FamilyProducts

indexable insert for drilling and turning

GRD2ND Standard designation of the grade 2nd application

HC-K35

GRDMFG Grade manufacturers designation

LC630T

GRDPRIO Standard designation of the grade main application

HC-K30

IC Inscribed circle diameter

8.73 mm

ID Technical product number

WCHX060204EN-BMC LC630T

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

5.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC0602 7N

Materials

P,M,K

Name Identifying order number

WCHX060204EN-BMC LC630T

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

WCHX060204EN

STDDESAnsi Standard designation ANSI

WCHX31.51EN

TCINS Tolerance class insert

Working process

BVB - Drilling,DDI - Internal turning
