Главная Каталог продукции Toolunited 15 201-07 - Trigon insert WCGT080404-BAL LC610T

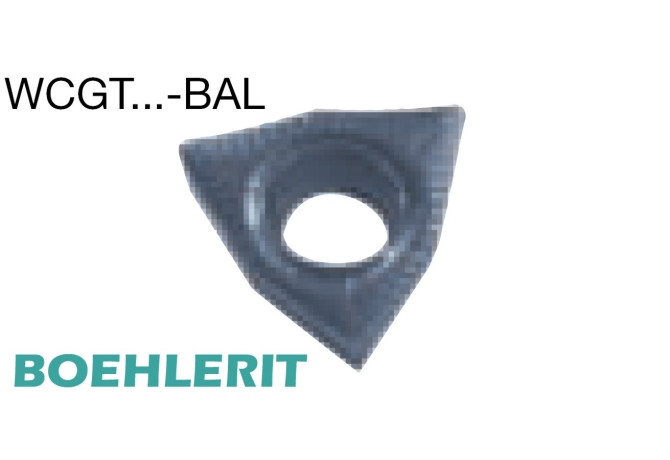

WCGT080404-BAL LC610T

Артикул: 6407951

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

BAL

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

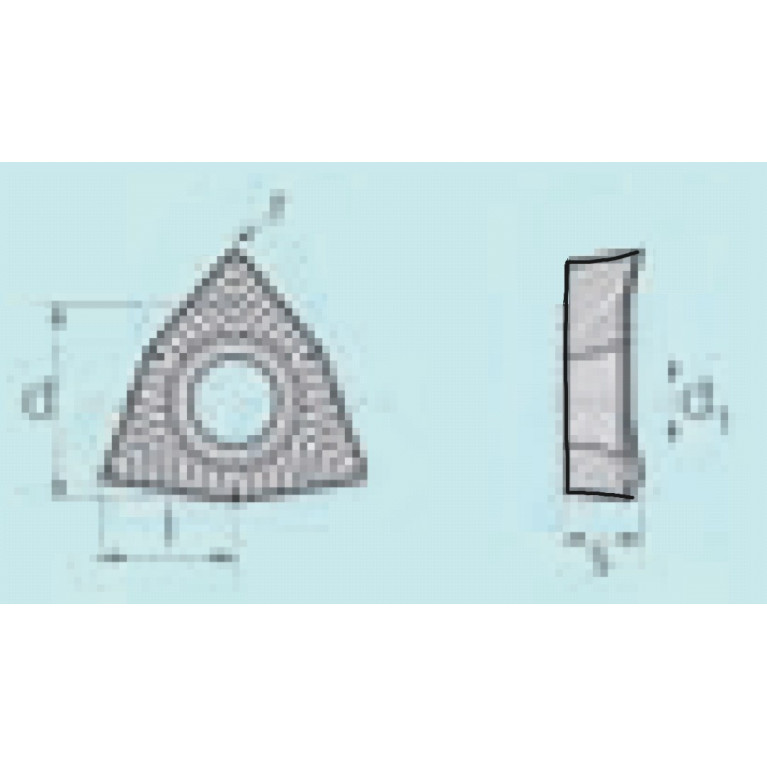

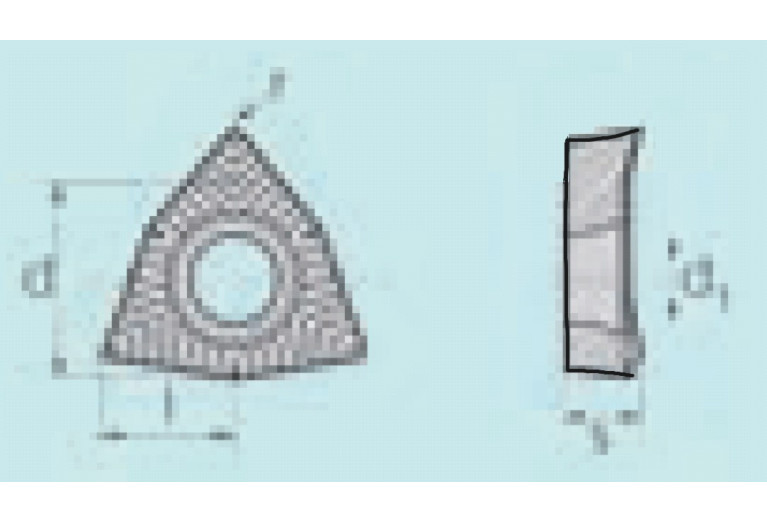

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

2/1/2009

DIN

WC0804 3N

EPSR Insert included angle

80 Degree

FamilyProducts

80° Triangular insert

GRDMFG Grade manufacturers designation

LC610T

GRDPRIO Standard designation of the grade main application

HC-K10

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6407951

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC0804 3N

Name Identifying order number

WCGT080404-BAL LC610T

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WCGT080404

STDDESAnsi Standard designation ANSI

WCGT431

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning
