Главная Каталог продукции Toolunited 15 201-07 - Trigon insert WCGT 060304SN-29 CTC1435

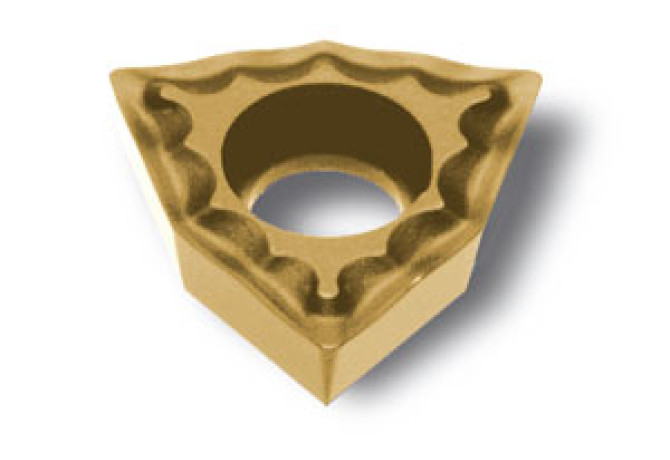

WCGT 060304SN-29 CTC1435

Артикул: WCGT 060304SN-29 CTC1435

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

8 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

DIN

WC0603043N

EPSR Insert included angle

84 Degree

FamilyProducts

carbide drilling insert

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-K20

GRDMFG Grade manufacturers designation

CTC1435

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

10 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.62 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC0603043N

Materials

P,M,K,S

Name Identifying order number

WCGT 060304SN-29 CTC1435

RE Corner radius

0.4 mm

S Insert thickness

3 mm

S1 Insert thickness total

3 mm

STDDES Standard designation

WCGT060304

STDDESAnsi Standard designation ANSI

WCGT321

TCINS Tolerance class insert

Working process

BVB - Drilling
