Главная Каталог продукции Toolunited 15 201-07 - Trigon insert 288972 6W

288972 6W

Артикул: 288972 6W

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

WN2114243N

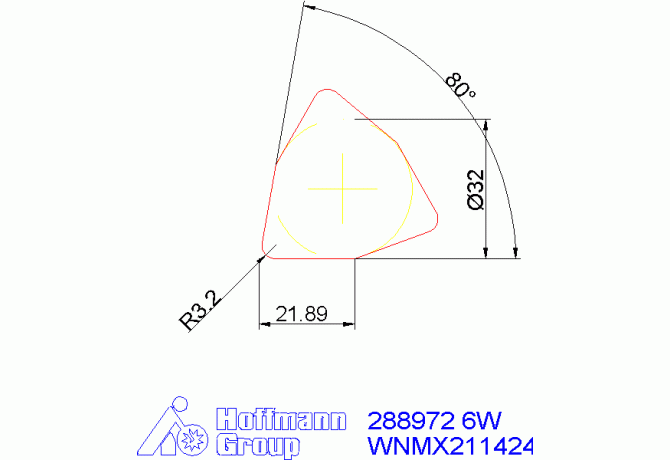

EPSR Insert included angle

80 Degree

FamilyProducts

WNMX 211432 SC6338 6W STELLRAM

GRDMFG Grade manufacturers designation

SC6338

IC Inscribed circle diameter

32 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

21.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN2114243N

Name Identifying order number

288972 6W

RE Corner radius

2.4 mm

S Insert thickness

14 mm

STDDES Standard designation

WNMX211424

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.19 kg
