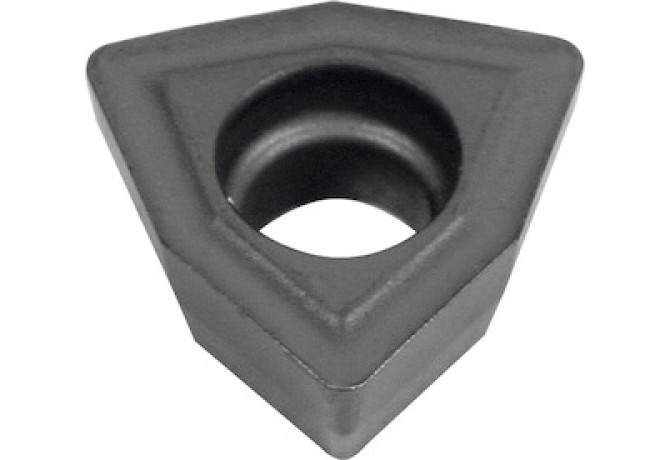

Главная Каталог продукции Toolunited 15 201-07 - Trigon insert 232430 UNI

232430 UNI

Артикул: 232430 UNI

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

8 Degree

ANN Clearance angle minor

0 Degree

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

WO0403043N

EPSR Insert included angle

84 Degree

FamilyProducts

WOEX 030204 T

GRDMFG Grade manufacturers designation

HB7830

IC Inscribed circle diameter

5 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

3.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WO0403043N

Name Identifying order number

232430 UNI

RE Corner radius

0.4 mm

S Insert thickness

2.3 mm

STDDES Standard designation

WOEX040304

STDDESAnsi Standard designation ANSI

WOEX221

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.002 kg
