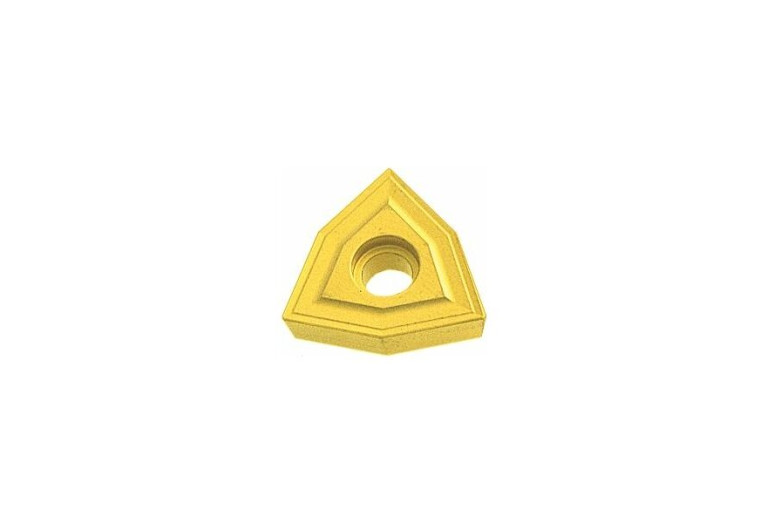

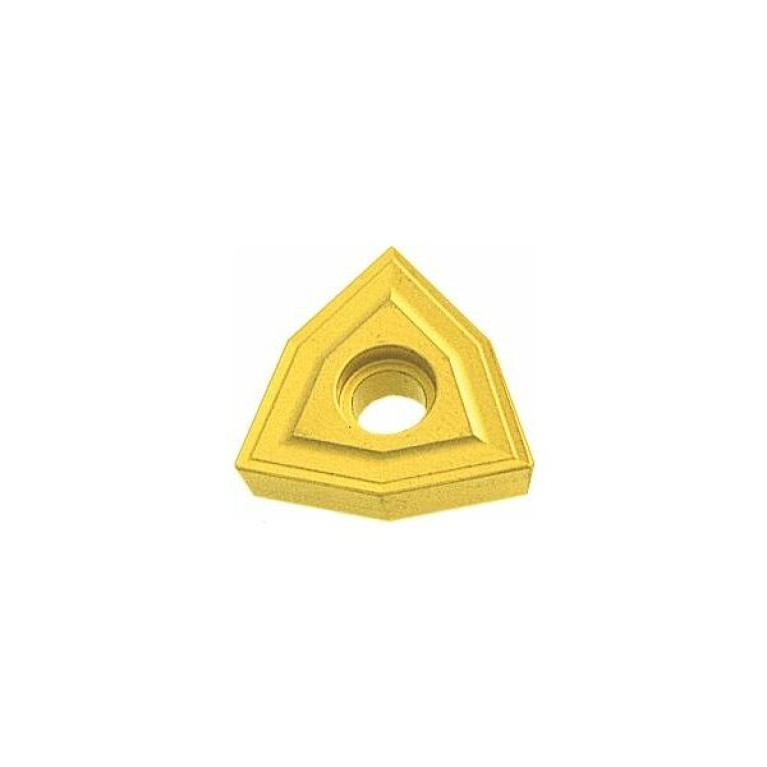

Главная Каталог продукции Toolunited 15 201-07 - Trigon insert 216850 34-010

216850 34-010

Артикул: 216850 34-010

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

8 Degree

ANN Clearance angle minor

0 Degree

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

WO06T3043N

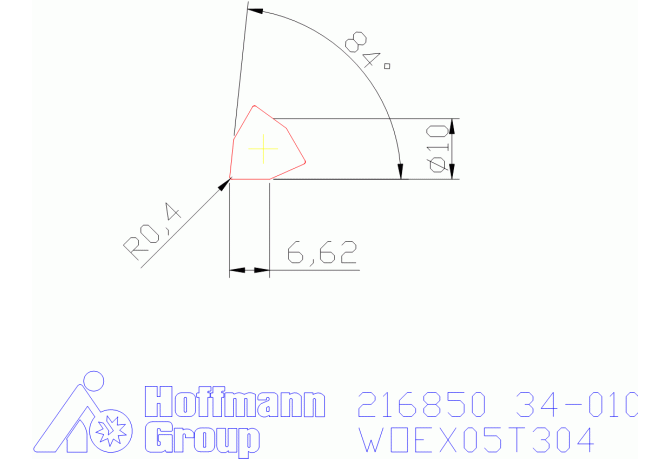

EPSR Insert included angle

84 Degree

FamilyProducts

KOMET Indexable insert type W29

GRDMFG Grade manufacturers designation

BK8425

IC Inscribed circle diameter

10 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WO06T3043N

Name Identifying order number

216850 34-010

RE Corner radius

0.4 mm

S Insert thickness

3.8 mm

STDDES Standard designation

WOEX06T304

STDDESAnsi Standard designation ANSI

WOEX32.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.004 kg
