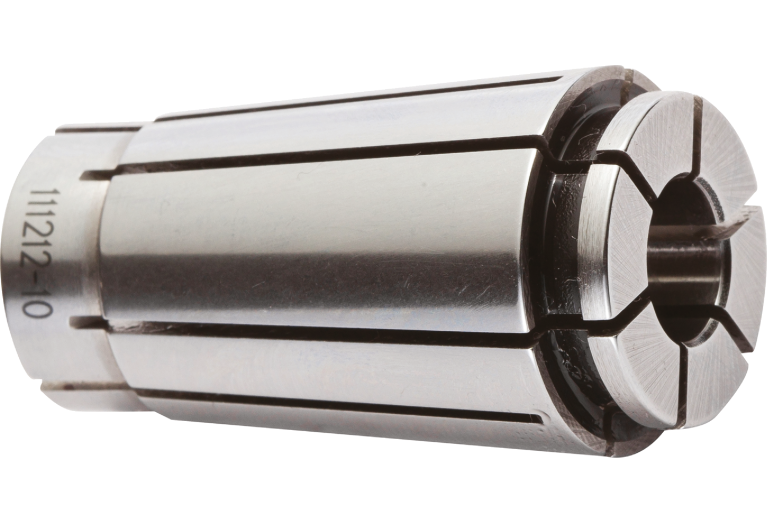

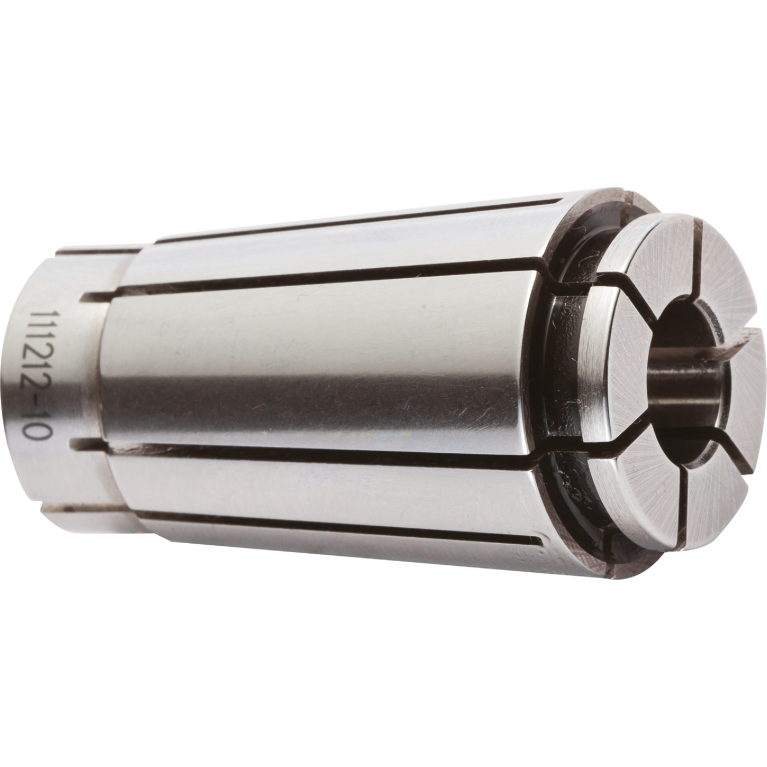

Главная Каталог продукции Toolunited 15 405-02 - Collet with straight shoulder HC6-6.0

HC6-6.0

HC6-6.0 HC6-6.0 HC6-6.0

HC6-6.0

Korloy
Артикул: 6-01-016668
В наличии
В корзину
Описание
Характеристики

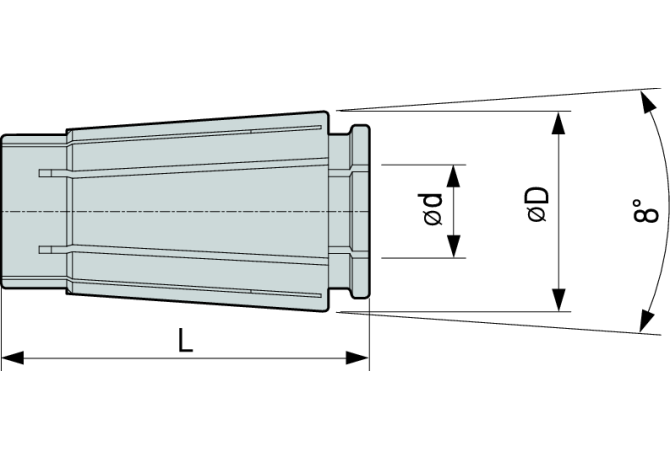

BD Body diameter
10.5 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
COLST Collet slot type
2 - On two side
COMPC Company code
KOR - Korloy
CZCWS Connection size code
0060
DCB Connection bore diameter
6 mm
Delivery state valid from
6/4/2014
DIN
KOR-HC6
FamilyProducts
Collet HC
ID Technical product number
6-01-016668
Interface codes
J6 /
ISYC Subclass
405-02 - Collet with straight shoulder
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0060
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00600105
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KOR-HC6
LSCX Clamping length maximum
6 mm
Name Identifying order number
HC6-6.0
OAL Overall length
25 mm
SEALP Sealing
0 - Without sealing
SZID Size identification
HC6
TA Taper angle 1
8 Degree
