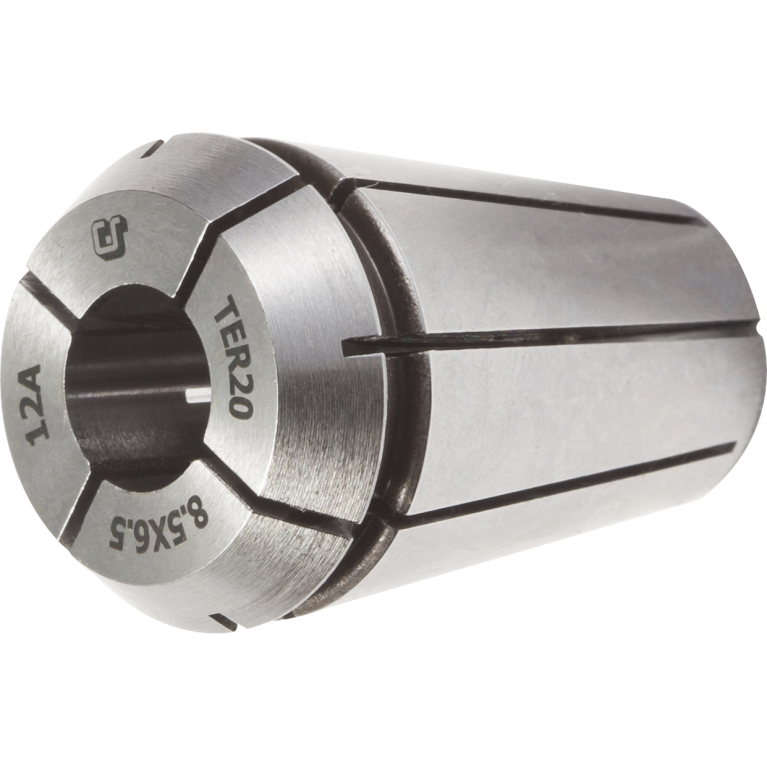

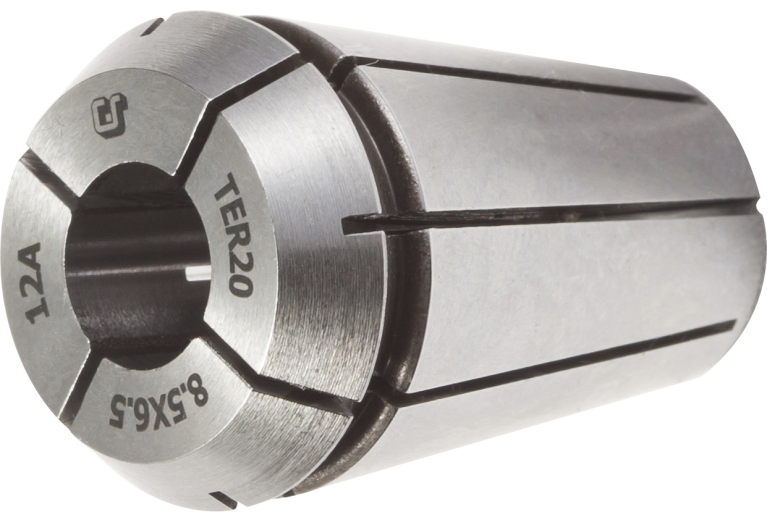

Главная Каталог продукции Toolunited 15 405-01 - Double angle collet TER32-10.5X8

TER32-10.5X8

Артикул: 6-01-024976

В наличии

В корзину

Описание

Характеристики

BD Body diameter

32.74 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

KOR - Korloy

CZCWS Connection size code

0105

DCB Connection bore diameter

10.5 mm

Delivery state valid from

6/4/2014

DIN

SZD03200185

FamilyProducts

TER(ER Tap Collet)

ID Technical product number

6-01-024976

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LCOL Collet length

40 mm

LFSF Distance to face

8.2 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0105

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01052105

LOC-03 CCFMS Connection code form

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CZCMS Connection size code

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD03200185

LSCX Clamping length maximum

25 mm

Name Identifying order number

TER32-10.5X8

OAL Overall length

40 mm

SEALP Sealing

0 - Without sealing

STDNO Standard

DIN6499

SZID Size identification

TER32

TA Taper angle 1

16 Degree

TA Taper angle 2

60 Degree
