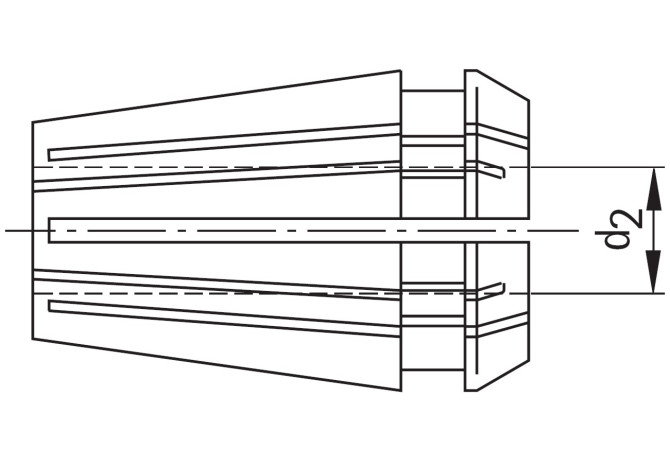

Главная Каталог продукции Toolunited 15 405-01 - Double angle collet SG4008-04

SG4008-04

Артикул: SG4008-04

В наличии

В корзину

Описание

Характеристики

BD Body diameter

41 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COLST Collet slot type

1 - On one side

COMPC Company code

MP - Mapal

CZCWS Connection size code

0040

DCBN Connection bore diameter minimum

3 mm

DCBX Connection bore diameter maximum

4 mm

DCOB Diameter collet offset bore

20 mm

Delivery state valid from

6/1/2009

DFC Functional diameter

40 mm

DIN

SZD04000295

FamilyProducts

collet, ER type, ISO 15488-B

ID Technical product number

SG4008-04

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LCOL Collet length

46 mm

LDG Gauge diameter distance

7.66 mm

LFSF Distance to face

7 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0040

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00300105ZYL00400105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD04000295

Name Identifying order number

SG4008-04

SEALP Sealing

0 - Without sealing

STDNO Standard

DIN6499

SZID Size identification

ER-40
