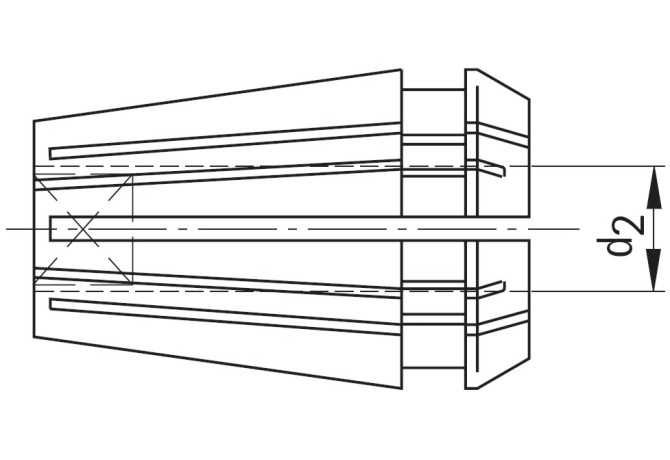

Главная Каталог продукции Toolunited 15 405-01 - Double angle collet GB4008-110

GB4008-110

Артикул: 10025161

В наличии

В корзину

Описание

Характеристики

BD Body diameter

41 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COLST Collet slot type

1 - On one side

COMPC Company code

MP - Mapal

CZCWS Connection size code

0110

DCBN Connection bore diameter minimum

11 mm

DCBX Connection bore diameter maximum

11 mm

DCOB Diameter collet offset bore

20 mm

Delivery state valid from

6/1/2009

DFC Functional diameter

40 mm

DIN

SZD04000295

FamilyProducts

Collet for threading ISO 15488

ID Technical product number

10025161

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LCOL Collet length

46 mm

LDG Gauge diameter distance

7.66 mm

LFSF Distance to face

7 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0110

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01102105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD04000295

Name Identifying order number

GB4008-110

SEALP Sealing

0 - Without sealing

STDNO Standard

DIN6499

SZID Size identification

ER-40
