Главная Каталог продукции Toolunited 15 405-01 - Double angle collet ER40 SPR 4-5 AA

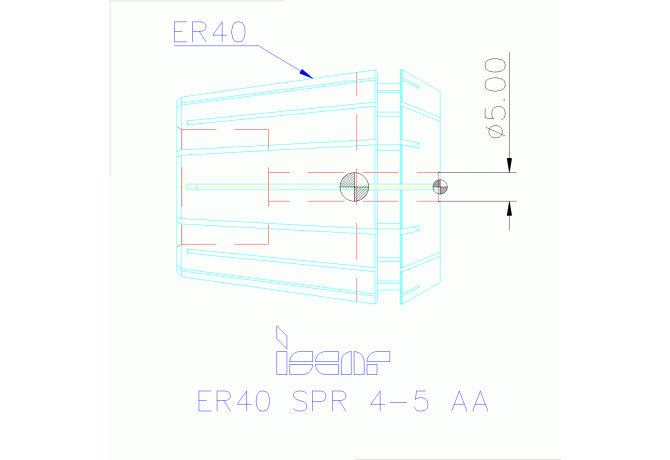

ER40 SPR 4-5 AA

Артикул: 4511401

В наличии

В корзину

Описание

Характеристики

BD Body diameter

41 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

IS - Iscar

CZCWS Connection size code

0050

DCBN Connection bore diameter minimum

4 mm

DCBX Connection bore diameter maximum

5 mm

Delivery state valid from

12/1/2014

DFC Functional diameter

40 mm

DIN

SZD04000285

FamilyProducts

ER40 SPR 4-5 AA

ID Technical product number

4511401

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LCOL Collet length

46 mm

LDG Gauge diameter distance

7.66 mm

LFSF Distance to face

7 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0050

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00400105

LOC-02 CCFWS Connection code form

LOC-02 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Connection code type

ZYL cylindrical shank

LOC-02 CCUWS Connection code unit base

0 Metric

LOC-02 CZCWS Connection size code

0050

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL00400105ZYL00500105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD04000285

Name Identifying order number

ER40 SPR 4-5 AA

OAL Overall length

46 mm

SEALP Sealing

0 - Without sealing

STDNO Standard

DIN6499

TA Taper angle 1

16 Degree

TG Taper ratio

UNNO Unified number

472E
