Главная Каталог продукции Toolunited 15 405-01 - Double angle collet ER32 SRF 12X50 JET2

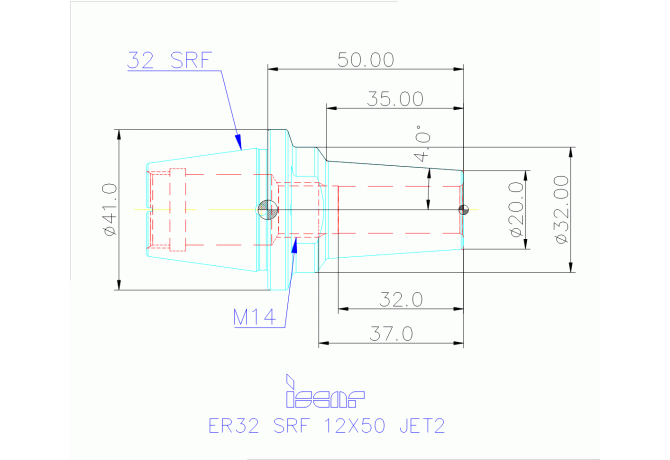

ER32 SRF 12X50 JET2

ER32 SRF 12X50 JET2 ER32 SRF 12X50 JET2

ER32 SRF 12X50 JET2

Iscar
Артикул: 4509231
В наличии
В корзину
Описание
Характеристики
BD Body diameter
12 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
COMPC Company code
IS - Iscar
CZCWS Connection size code
0120
DCB Connection bore diameter
12 mm
DCBN Connection bore diameter minimum
12 mm
DCBX Connection bore diameter maximum
12 mm
Delivery state valid from
12/1/2014
DIN
SZD03200285
FamilyProducts
ER32 SRF 12X50 JET2
ID Technical product number
4509231
Interface codes
J6 /
ISYC Subclass
405-01 - Double angle collet
LCOL Collet length
50 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0120
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01200105
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SZD Collet adapter DIN / ISO
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0320
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SZD03200285
Name Identifying order number
ER32 SRF 12X50 JET2
OAL Overall length
50 mm
SEALP Sealing
0 - Without sealing
TA Taper angle 1
16 Degree
TG Taper ratio
30
