Главная Каталог продукции Toolunited 15 405-01 - Double angle collet ER25 SEAL 5-6 JET2

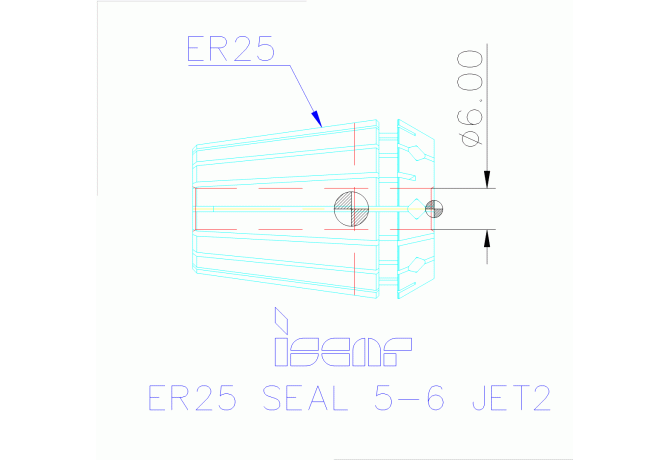

ER25 SEAL 5-6 JET2

ER25 SEAL 5-6 JET2 ER25 SEAL 5-6 JET2

ER25 SEAL 5-6 JET2

Iscar
Артикул: 4500318
В наличии
В корзину
Описание
Характеристики
BD Body diameter
26 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
COMPC Company code
IS - Iscar
CZCWS Connection size code
0060
DCBN Connection bore diameter minimum
5 mm
DCBX Connection bore diameter maximum
6 mm
Delivery state valid from
12/1/2014
DFC Functional diameter
25 mm
DIN
SZD02500295
FamilyProducts
ER25 SEAL 5-6 JET2
ID Technical product number
4500318
Interface codes
J6 /
ISYC Subclass
405-01 - Double angle collet
LCOL Collet length
34 mm
LDG Gauge diameter distance
6.66 mm
LFSF Distance to face
5 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0060
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00500105ZYL00600105
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SZD Collet adapter DIN / ISO
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SZD02500295
Name Identifying order number
ER25 SEAL 5-6 JET2
OAL Overall length
34 mm
SEALP Sealing
1 - With sealing
TA Taper angle 1
16 Degree
TG Taper ratio
30
UNNO Unified number
430E
