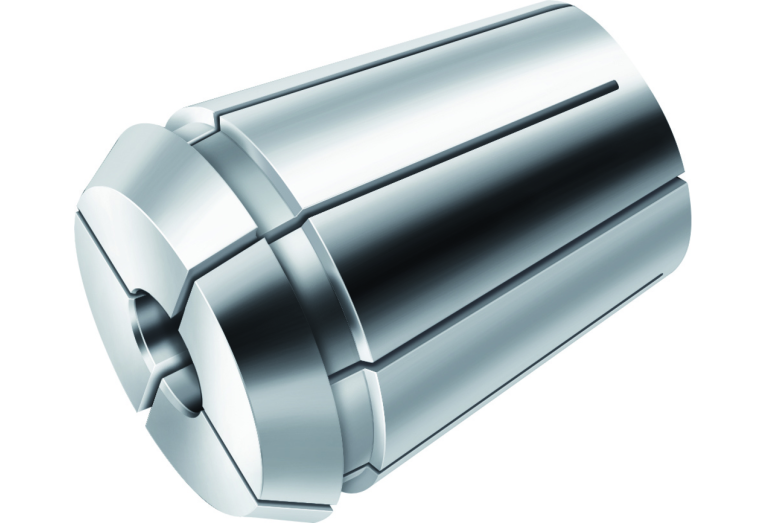

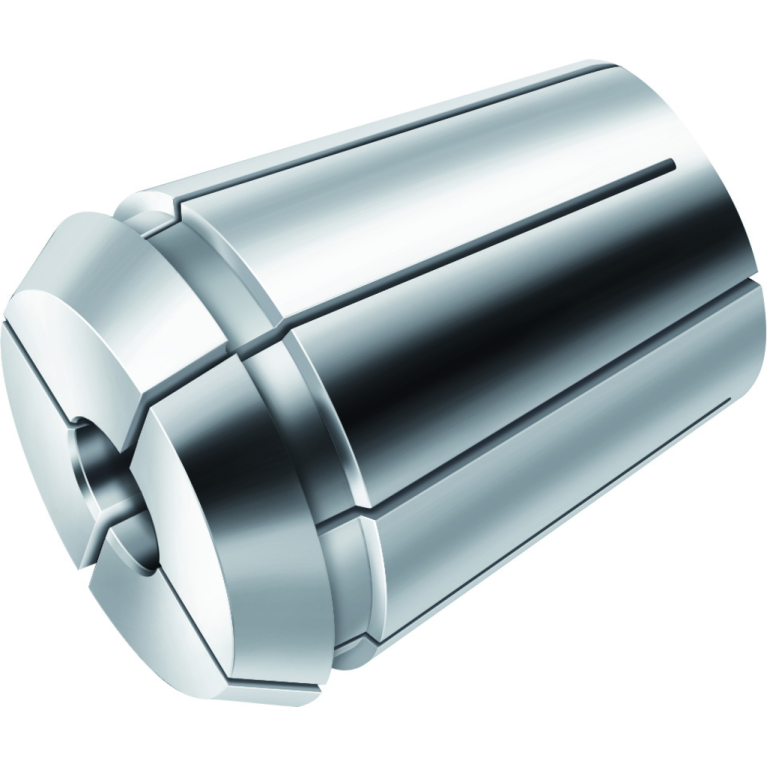

Главная Каталог продукции Toolunited 15 405-01 - Double angle collet C340.11.035

C340.11.035

Артикул: 6218033

В наличии

В корзину

Описание

Характеристики

BD Body diameter

11.3 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

COMPC Company code

W - Walter

CZCWS Size code

0035

Delivery state valid from

12/1/2023

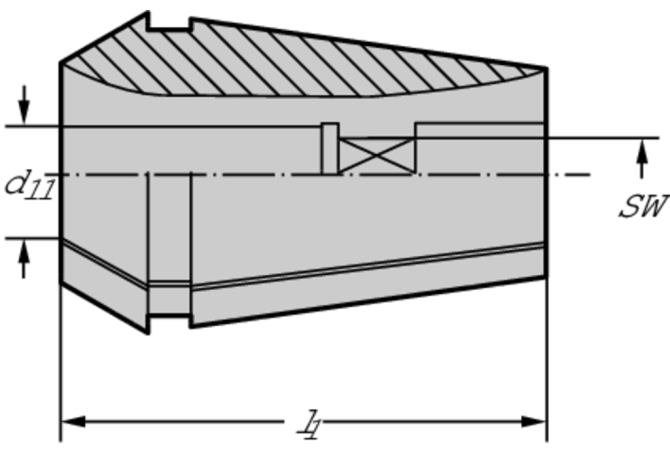

DFC Functional diameter

11 mm

DIN

SZD01100295

FamilyProducts

DIN 6499 ER tapping collets C340

ID Technical product number

6218033

Interface codes

J6 / J61

ISO

SZD02C0110$$$$

ISYC Subclass

405-01 - Double angle collet

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0035

LOC-01 ISO

ZYL21F3500****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00352115

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

1 Metric with coolant

LOC-02 CZCWS Size code

0035

LOC-02 ISO

ZYL21R1377****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01372135

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0110

LOC-03 ISO

SZD02C0110$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD01100295

LSC Clamping length

11.7 mm

Name Identifying order number

C340.11.035

OAL Overall length

18 mm

WT Weight of item

0.009 kg
