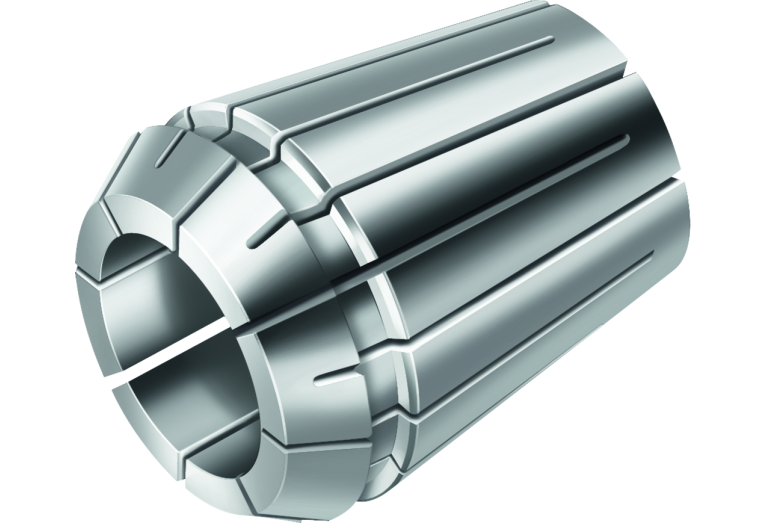

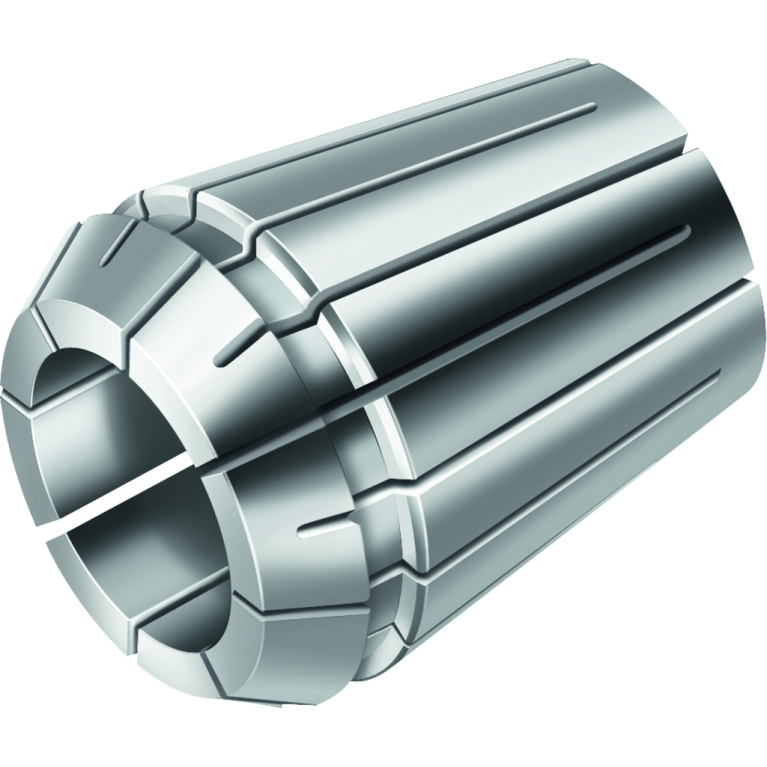

Главная Каталог продукции Toolunited 15 405-01 - Double angle collet C330.20.050

C330.20.050

Артикул: 5035300

В наличии

В корзину

Описание

Характеристики

BD Body diameter

32.9 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

COMPC Company code

W - Walter

CZCWS Size code

0040

DCBN Connection bore diameter minimum

4 mm

DCBX Connection bore diameter maximum

5 mm

Delivery state valid from

12/1/2023

DFC Functional diameter

32 mm

DIN

SZD03200295

FamilyProducts

DIN 6499 ER collets C330

ID Technical product number

5035300

Interface codes

J6 / J61

ISO

SZD02C0320$$$$

ISYC Subclass

405-01 - Double angle collet

LOC-01 CCFWS Form

LOC-01 CCSWS Style

6 Adjustable shaft in machine direction or adjustable hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0040

LOC-01 ISO

ZYL01F4000****ZYL01F5000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00400116ZYL00500116

LOC-02 CCFWS Form

LOC-02 CCSWS Style

6 Adjustable shaft in machine direction or adjustable hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

1 Metric with coolant

LOC-02 CZCWS Size code

0040

LOC-02 ISO

ZYL01R1574****ZYL01R1968****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL00402015ZYL00502015

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0320

LOC-03 ISO

SZD02C0320$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD03200295

LSC Clamping length

27.34 mm

Name Identifying order number

C330.20.050

OAL Overall length

40 mm

WT Weight of item

0.158 kg
