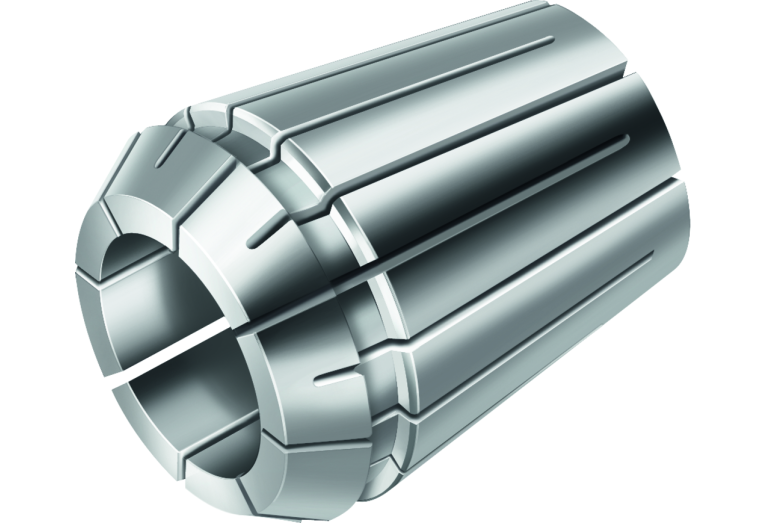

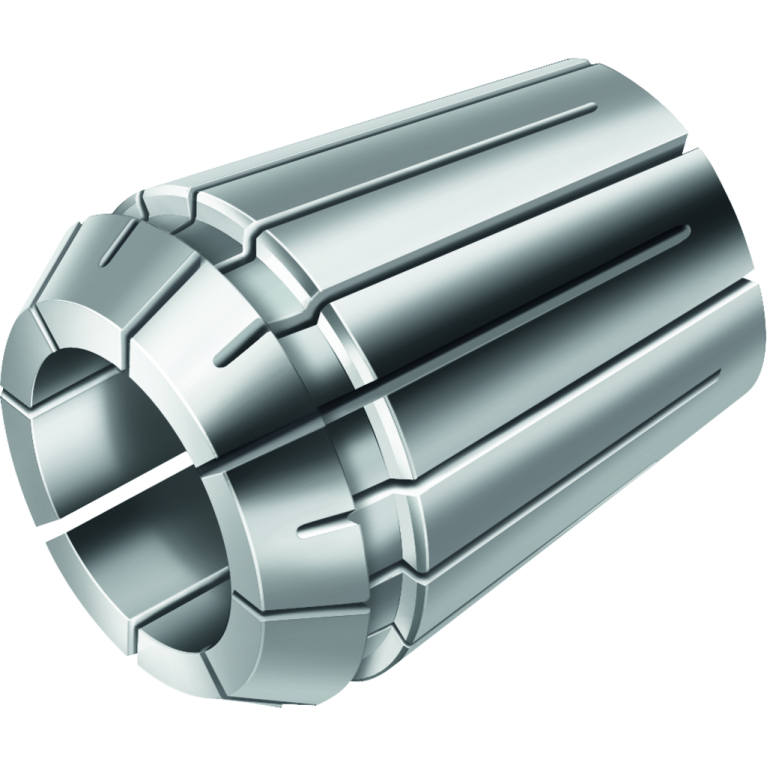

Главная Каталог продукции Toolunited 15 405-01 - Double angle collet C330.16.120

C330.16.120

Артикул: 5034294

В наличии

В корзину

Описание

Характеристики

BD Body diameter

25.8 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

COMPC Company code

W - Walter

CZCWS Size code

0110

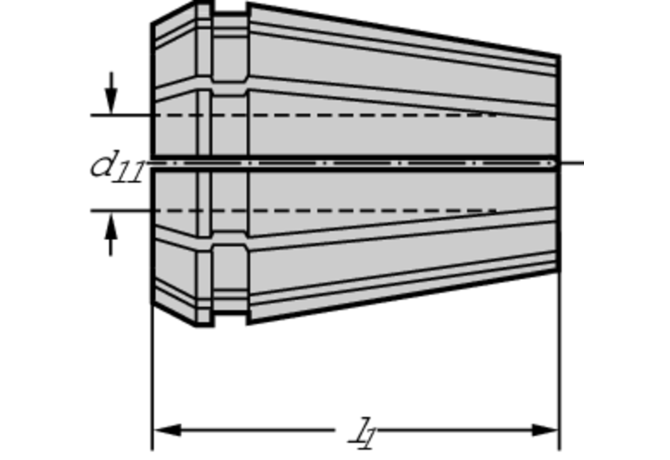

DCBN Connection bore diameter minimum

11 mm

DCBX Connection bore diameter maximum

12 mm

Delivery state valid from

12/1/2023

DFC Functional diameter

25 mm

DIN

SZD02500295

FamilyProducts

DIN 6499 ER collets C330

ID Technical product number

5034294

Interface codes

J6 / J61

ISO

SZD02C0250$$$$

ISYC Subclass

405-01 - Double angle collet

LOC-01 CCFWS Form

LOC-01 CCSWS Style

6 Adjustable shaft in machine direction or adjustable hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0110

LOC-01 ISO

ZYL01G1100****ZYL01G1200****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01100116ZYL01200116

LOC-02 CCFWS Form

LOC-02 CCSWS Style

6 Adjustable shaft in machine direction or adjustable hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

1 Metric with coolant

LOC-02 CZCWS Size code

0110

LOC-02 ISO

ZYL01R4330****ZYL01R4724****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01102015ZYL01202015

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0250

LOC-03 ISO

SZD02C0250$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD02500295

LSC Clamping length

22.34 mm

Name Identifying order number

C330.16.120

OAL Overall length

34 mm

WT Weight of item

0.063 kg
