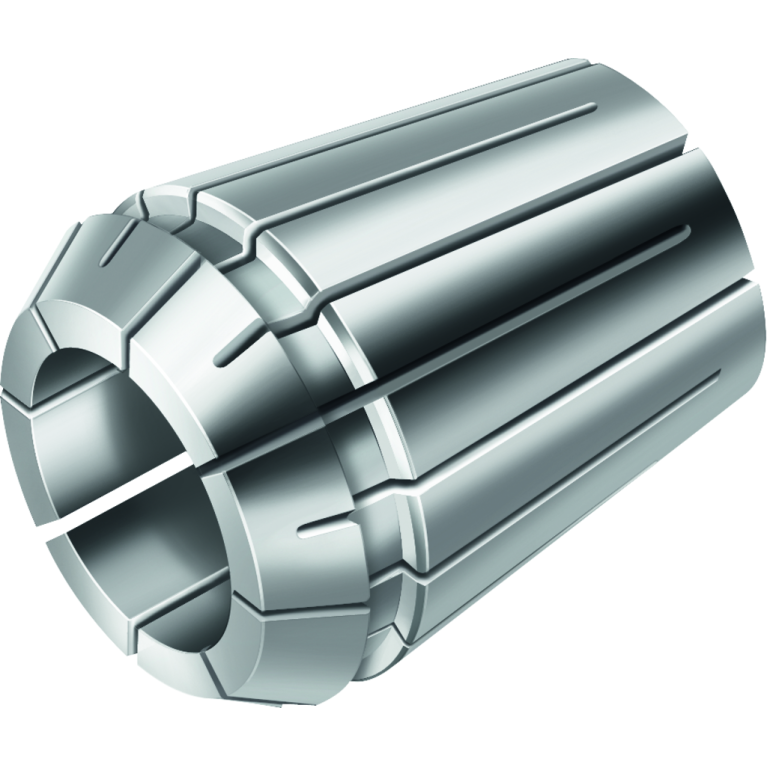

Главная Каталог продукции Toolunited 15 405-01 - Double angle collet C330.10.080

C330.10.080

Артикул: 5006400

В наличии

В корзину

Описание

Характеристики

BD Body diameter

17.2 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

COMPC Company code

W - Walter

CZCWS Size code

0070

DCBN Connection bore diameter minimum

7 mm

DCBX Connection bore diameter maximum

8 mm

Delivery state valid from

12/1/2023

DFC Functional diameter

16 mm

DIN

SZD01600295

FamilyProducts

DIN 6499 ER collets C330

ID Technical product number

5006400

Interface codes

J6 / J61

ISO

SZD02C0160$$$$

ISYC Subclass

405-01 - Double angle collet

LOC-01 CCFWS Form

LOC-01 CCSWS Style

6 Adjustable shaft in machine direction or adjustable hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0070

LOC-01 ISO

ZYL01F7000****ZYL01F8000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00700116ZYL00800116

LOC-02 CCFWS Form

LOC-02 CCSWS Style

6 Adjustable shaft in machine direction or adjustable hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

1 Metric with coolant

LOC-02 CZCWS Size code

0070

LOC-02 ISO

ZYL01R2755****ZYL01R3149****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL00702015ZYL00802015

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0160

LOC-03 ISO

SZD02C0160$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD01600295

LSC Clamping length

17.24 mm

Name Identifying order number

C330.10.080

OAL Overall length

27.5 mm

WT Weight of item

0.02 kg
