Главная Каталог продукции Toolunited 15 405-01 - Double angle collet ER40 SPR 8-9 AA

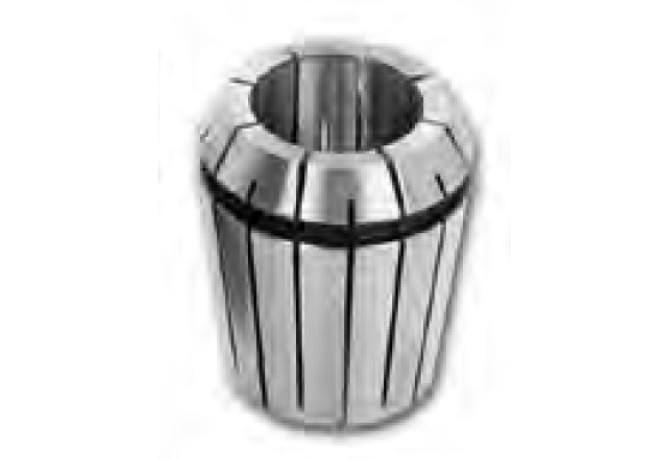

ER40 SPR 8-9 AA

Артикул: ER40 SPR 8-9 AA

В наличии

В корзину

Описание

Характеристики

BD Body diameter

41 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

COLST Collet slot type

2 - On two side

COMPC Company code

TT - Tungaloy

CZCWS Size code

0090

DCB Connection bore diameter

9 mm

DCBN Connection bore diameter minimum

8 mm

DCBX Connection bore diameter maximum

9 mm

Delivery state valid from

10/26/2012

DFC Functional diameter

40 mm

DIN

SZD04000295

FamilyProducts

ER40 collet DIN 6499 (maximum precision)

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LCOB Length collet offset bore

18 mm

LCOL Collet length

46 mm

LDG Gauge diameter distance

7.66 mm

LFSF Distance to face

7 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

0 Metric

LOC-01 CZCWS Size code

0090

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00800105ZYL00900105

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD04000295

LSCX Clamping length maximum

9 mm

Name Identifying order number

ER40 SPR 8-9 AA

OAL Overall length

46 mm

SEALP Sealing

0 - Without sealing

STDNO Standard

DIN6499

SZID Size identification

8-9

TA Taper angle 1

16 Degree

UNNO Unified number

ER40
