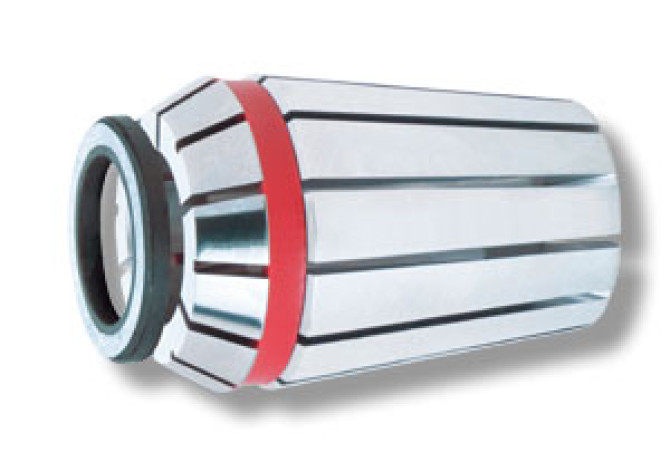

Главная Каталог продукции Toolunited 15 405-01 - Double angle collet 426E-038-PS

426E-038-PS

Артикул: 426E-038-PS

В наличии

В корзину

Описание

Характеристики

BD Body diameter

17.25 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COLST Collet slot type

2 - On two side

COMPC Company code

CE - Ceratizit

CZCWS Connection size code

0038

DCBN Connection bore diameter minimum

3.8 mm

DCBX Connection bore diameter maximum

3.8 mm

DCOB Diameter collet offset bore

7.5 mm

DFC Functional diameter

16 mm

DIN

SZD01600295

FamilyProducts

Precision collet

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LCOB Length collet offset bore

9 mm

LCOL Collet length

27.5 mm

LDG Gauge diameter distance

6.26 mm

LFSF Distance to face

4 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0038

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00380115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD01600295

Name Identifying order number

426E-038-PS

OAL Overall length

27.5 mm

SEALP Sealing

0 - Without sealing

STDLET Standard letter to the standard number

STDNO Standard

DIN6499

SZID Size identification

16x7

TA Taper angle 1

16 Degree

TA Taper angle 2

30 Degree

UNNO Unified number

426E
