Главная Каталог продукции Toolunited 15 405-01 - Double angle collet ER40 SEAL 7-8 JET2

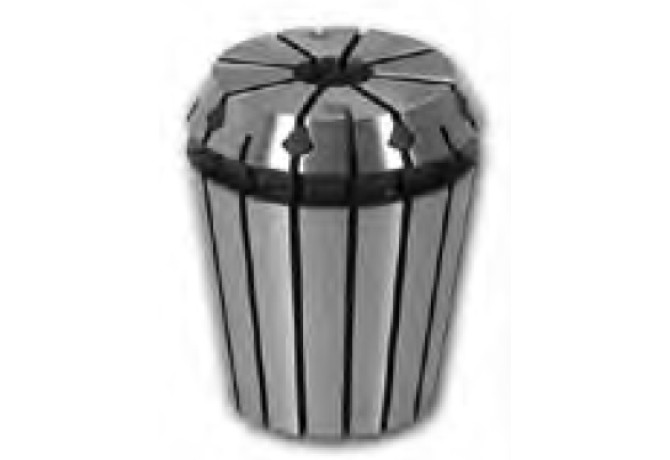

ER40 SEAL 7-8 JET2

ER40 SEAL 7-8 JET2 ER40 SEAL 7-8 JET2

ER40 SEAL 7-8 JET2

Tungaloy
Артикул: 4500347
В наличии
В корзину
Описание
Характеристики
BD Body diameter
41 mm
CCFWS Form
01
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
1
COLST Collet slot type
2 - On two side
COMPC Company code
TT - Tungaloy
CZCWS Size code
0080
DCB Connection bore diameter
8 mm
DCBN Connection bore diameter minimum
7 mm
DCBX Connection bore diameter maximum
8 mm
Delivery state valid from
10/26/2012
DFC Functional diameter
40 mm
DIN
SZD04000295
FamilyProducts
ER40 collet, for coolant JET2 100 bar
ID Technical product number
4500347
Interface codes
J6 /
ISYC Subclass
405-01 - Double angle collet
LCOB Length collet offset bore
18 mm
LCOL Collet length
46 mm
LDG Gauge diameter distance
7.66 mm
LFSF Distance to face
7 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0080
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00700115ZYL00800115
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SZD Collet adapter DIN / ISO
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SZD04000295
LSCX Clamping length maximum
8 mm
Name Identifying order number
ER40 SEAL 7-8 JET2
OAL Overall length
46 mm
SEALP Sealing
1 - With sealing
STDNO Standard
DIN6499
SZID Size identification
7-8
TA Taper angle 1
16 Degree
UNNO Unified number
ER40
