Главная Каталог продукции Toolunited 15 405-01 - Double angle collet ER32 SEAL 9-10 JET2

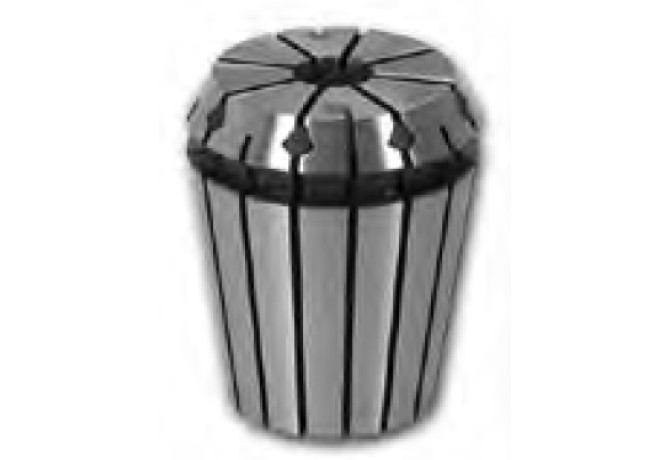

ER32 SEAL 9-10 JET2

ER32 SEAL 9-10 JET2 ER32 SEAL 9-10 JET2

ER32 SEAL 9-10 JET2

Tungaloy
Артикул: 4500335
В наличии
В корзину
Описание
Характеристики
BD Body diameter
33 mm
CCFWS Form
01
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
1
COLST Collet slot type
2 - On two side
COMPC Company code
TT - Tungaloy
CZCWS Size code
0100
DCB Connection bore diameter
10 mm
DCBN Connection bore diameter minimum
9 mm
DCBX Connection bore diameter maximum
10 mm
Delivery state valid from
10/26/2012
DFC Functional diameter
32 mm
DIN
SZD03200295
FamilyProducts
ER32 collet, for coolant JET2 100 bar
ID Technical product number
4500335
Interface codes
J6 /
ISYC Subclass
405-01 - Double angle collet
LCOL Collet length
40 mm
LDG Gauge diameter distance
7.16 mm
LFSF Distance to face
5.5 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0100
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00900115ZYL01000115
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SZD Collet adapter DIN / ISO
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SZD03200295
LSCX Clamping length maximum
10 mm
Name Identifying order number
ER32 SEAL 9-10 JET2
OAL Overall length
40 mm
SEALP Sealing
1 - With sealing
STDNO Standard
DIN6499
SZID Size identification
9-10
TA Taper angle 1
16 Degree
UNNO Unified number
ER32
