Главная Каталог продукции Toolunited 15 405-01 - Double angle collet ER32 SEAL 17-18

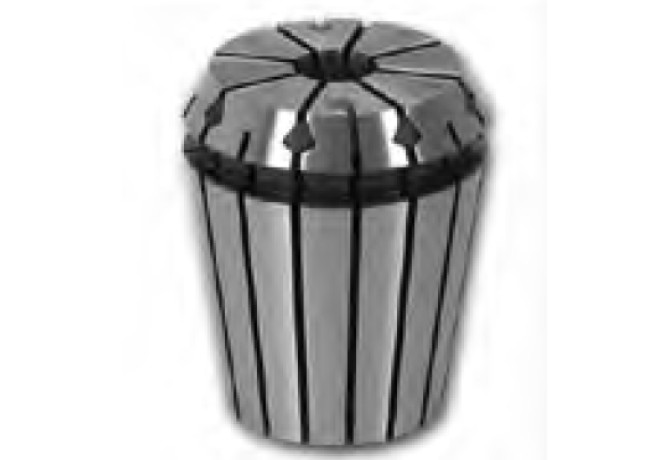

ER32 SEAL 17-18

Артикул: 4501045

В наличии

В корзину

Описание

Характеристики

BD Body diameter

33 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

COLST Collet slot type

2 - On two side

COMPC Company code

TT - Tungaloy

CZCWS Size code

0180

DCB Connection bore diameter

18 mm

DCBN Connection bore diameter minimum

17 mm

DCBX Connection bore diameter maximum

18 mm

Delivery state valid from

10/26/2012

DFC Functional diameter

32 mm

DIN

SZD03200295

FamilyProducts

ER32 collet, for coolant Jet 100 bar

ID Technical product number

4501045

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LCOL Collet length

40 mm

LDG Gauge diameter distance

7.16 mm

LFSF Distance to face

5.5 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0180

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01700115ZYL01800115

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD03200295

LSCX Clamping length maximum

18 mm

Name Identifying order number

ER32 SEAL 17-18

OAL Overall length

40 mm

SEALP Sealing

1 - With sealing

STDNO Standard

DIN6499

SZID Size identification

17-18

TA Taper angle 1

16 Degree

UNNO Unified number

ER32
