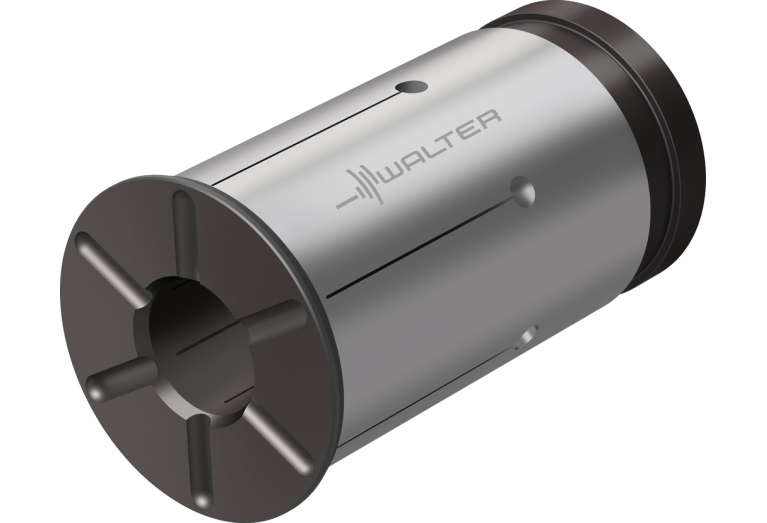

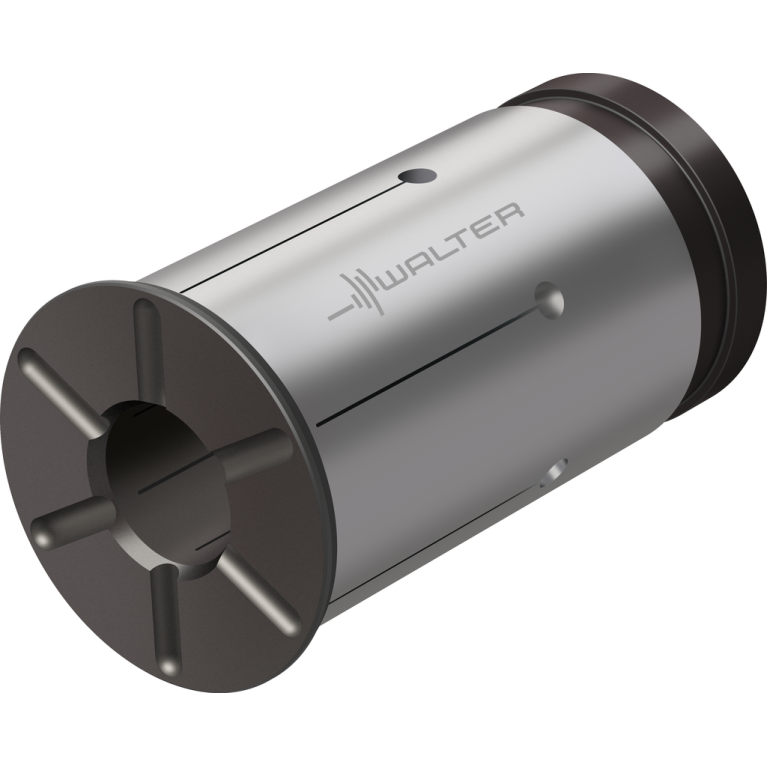

Главная Каталог продукции Toolunited 15 405-08 - Cylindrical clamping sleeve FS2201

FS2201

Артикул: 6358343

В наличии

В корзину

Описание

Характеристики

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

COMPC Company code

W - Walter

CZCWS Size code

0050

Delivery state valid from

12/1/2023

DIN

SZC02000215

FamilyProducts

Adaptor sleeves for internal cooling FS...

ID Technical product number

6358343

Interface codes

J6 / J61

ISO

SZC02G2000$$$$

ISYC Subclass

405-08 - Cylindrical clamping sleeve

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0050

LOC-01 ISO

ZYL01F5000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00500115

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

1 Metric with coolant

LOC-02 CZCWS Size code

0050

LOC-02 ISO

ZYL01R1968****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL00501015

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SZC Collet adapter SANDVIK Coromant

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 ISO

SZC02G2000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZC02000215

LSC Clamping length

50 mm

Name Identifying order number

FS2201

OAL Overall length

52.5 mm

WT Weight of item

0.096 kg
