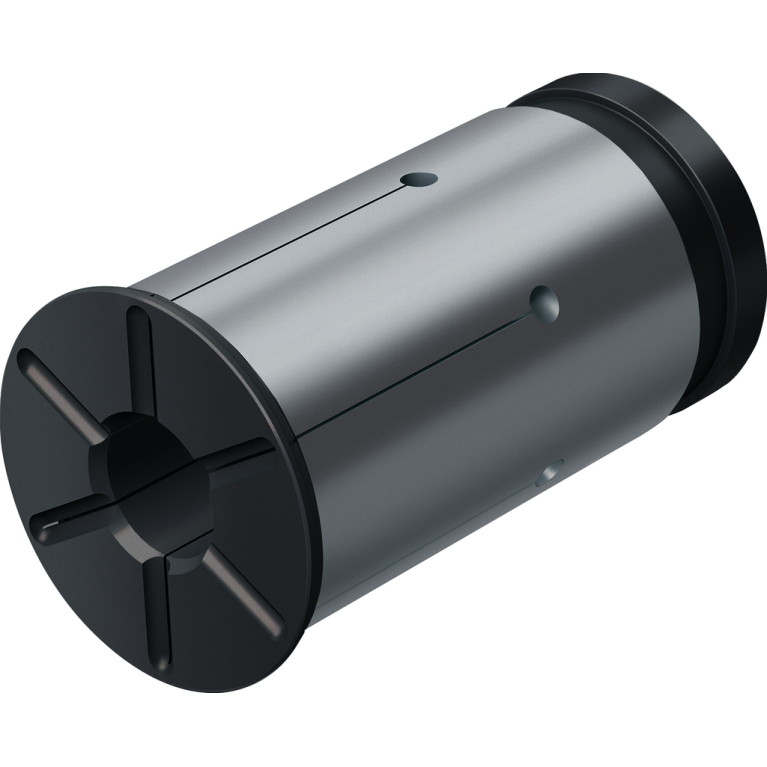

Главная Каталог продукции Toolunited 15 405-08 - Cylindrical clamping sleeve FS2198

FS2198

Артикул: 6358217

В наличии

В корзину

Описание

Характеристики

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

COMPC Company code

W - Walter

CZCWS Size code

0080

Delivery state valid from

12/1/2023

DIN

SZC01200205

FamilyProducts

Adaptor sleeves for peripheral cooling FS...

ID Technical product number

6358217

Interface codes

J6 / J61

ISO

SZC02G1200$$$$

ISYC Subclass

405-08 - Cylindrical clamping sleeve

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

0 Metric

LOC-01 CZCWS Size code

0080

LOC-01 ISO

ZYL01F8000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00800105

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

0 Metric

LOC-02 CZCWS Size code

0080

LOC-02 ISO

ZYL01R3149****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL00801005

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SZC Collet adapter SANDVIK Coromant

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 ISO

SZC02G1200$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZC01200205

LSC Clamping length

40 mm

Name Identifying order number

FS2198

OAL Overall length

47 mm

WT Weight of item

0.028 kg
