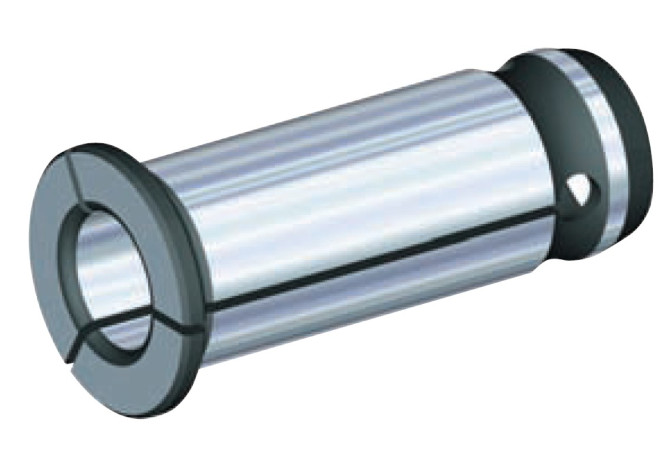

Главная Каталог продукции Toolunited 15 405-08 - Cylindrical clamping sleeve 32SMC080M

32SMC080M

32SMC080M 32SMC080M 32SMC080M

32SMC080M

Kennametal
Артикул: 3273859
В наличии
В корзину
Описание
Характеристики
BD Body diameter
37 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
COMPC Company code
KH - Kennametal
CZCWS Connection size code
0080
DCB Connection bore diameter
8 mm
DCBN Connection bore diameter minimum
7.991 mm
DCBX Connection bore diameter maximum
8 mm
DCOB Diameter collet offset bore
8 mm
Delivery state valid from
1/4/2011
DIN
KH-SMC32
FamilyProducts
SMC32 Milling Chuck Sleeve - 32mm - Metric Bore
ID Technical product number
3273859
Interface codes
J6 /
ISYC Subclass
405-08 - Cylindrical clamping sleeve
LCOL Collet length
61.51 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0080
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00800115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KH-SMC32
Name Identifying order number
32SMC080M
OAL Overall length
61.51 mm
SEALP Sealing
1 - With sealing
