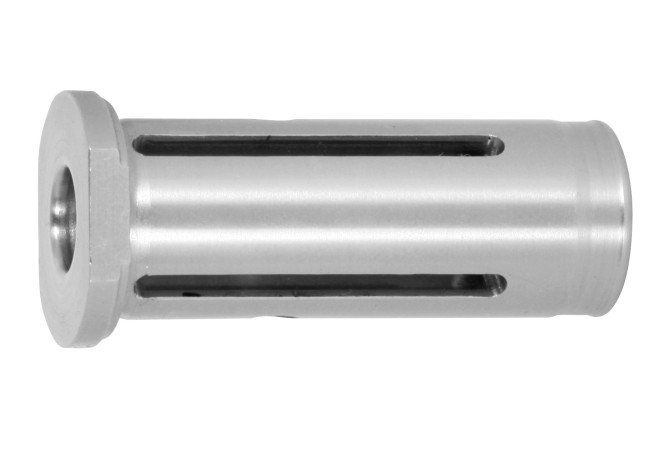

Главная Каталог продукции Toolunited 15 405-08 - Cylindrical clamping sleeve 302377 16

302377 16

302377 16 302377 16 302377 16

302377 16

Hoffmann Group
Артикул: 302377 16
В наличии
В корзину
Описание
Характеристики

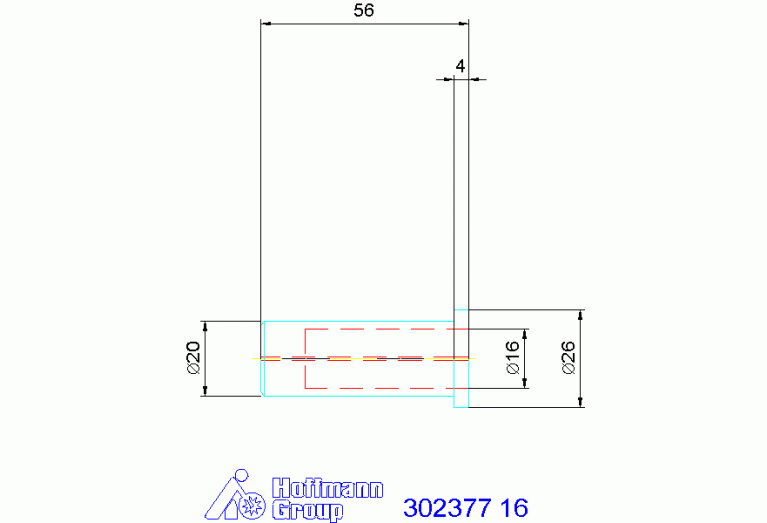

BD Body diameter
26 mm
CCFWS Connection code form
10
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
COATN Coating / Покрытие
0
COLST Collet slot type
3 - Elastic joined discs
COMPC Company code
HOG - Hoffmann Group
CZCWS Connection size code
0160
DCB Connection bore diameter
16 mm
DCBN Connection bore diameter minimum
15.989 mm
DCBX Connection bore diameter maximum
16 mm
Delivery state valid from
1/11/2017
DFC Functional diameter
20 mm
DIN
ZYL02000115
FamilyProducts
GARANT Reducing adapter with pull-out protection
Interface codes
J6 /
ISYC Subclass
405-08 - Cylindrical clamping sleeve
LOC-01 CCFWS Connection code form
10
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01600105
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000115
LSC Clamping length
44 mm
LSCX Clamping length maximum
44 mm
Name Identifying order number
302377 16
OAL Overall length
56 mm
SEALP Sealing
1 - With sealing
SZID Size identification
20
WT Weight of item
0.07 kg
