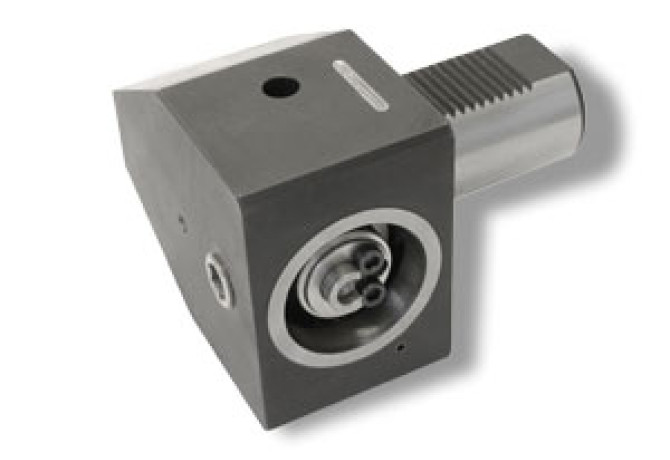

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary UT40-VDI4040-WRR

UT40-VDI4040-WRR

UT40-VDI4040-WRR UT40-VDI4040-WRR

UT40-VDI4040-WRR

Ceratizit
Артикул: 11038965
В наличии
В корзину
Описание
Характеристики
ADJHT Adujstment height property
0
CCFWS Connection code form
01
CCONWS Connection count workpiece side
1
CCSWS Connection code style
5
CCTWS Connection code type
UTS
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0400
DCP Data chip provision
0 - Without data chip
DIN
ZYV04000115
FamilyProducts
Maxiflex UTS R tool holder
HAND Cutting direction
N - Neutral
ID Technical product number
11038965
Interface codes
J6 /
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
90 Degree
LAM Actuation method
0 - manual clamping
LF Functional length
25 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
UTS Widaflex connection WIDIA
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0400
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
UTS04000195
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV04000115
LPR Protruding length
48 mm
Name Identifying order number
UT40-VDI4040-WRR
OAH Overall height
76.5 mm
OAL Overall length
111 mm
OAW Overall width
82.5 mm
RADH Radial height
34 mm
RADW Radial width
40 mm
