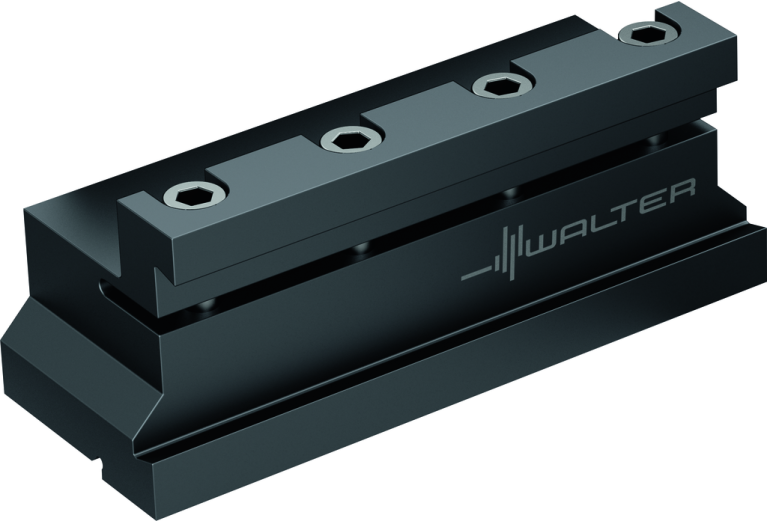

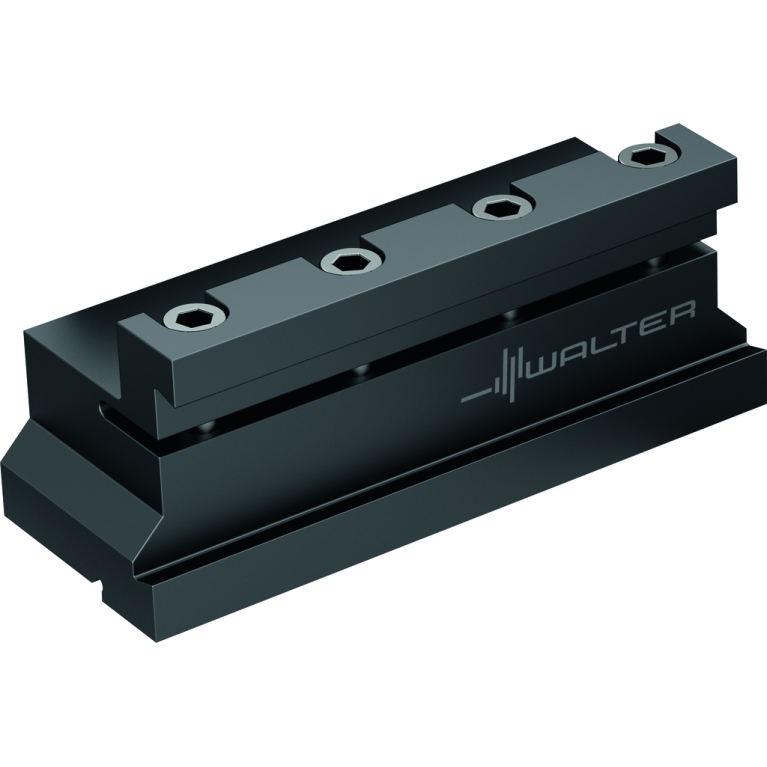

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary SBN3229-32-K

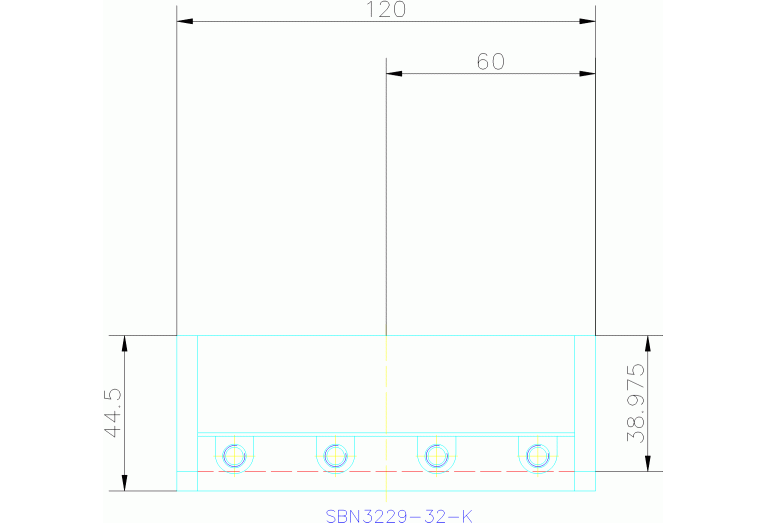

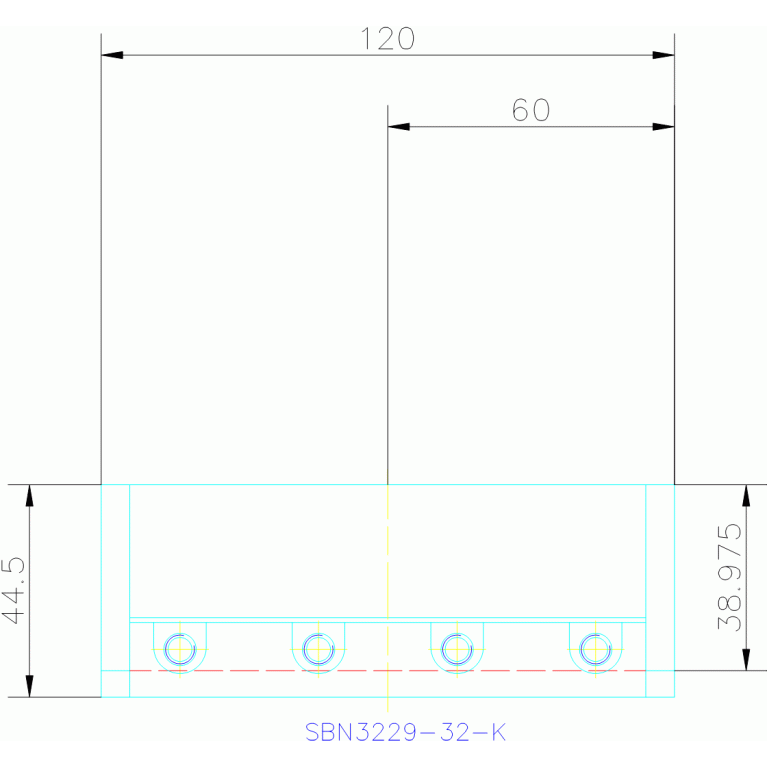

SBN3229-32-K

Артикул: 5009207

В наличии

В корзину

Описание

Характеристики

CCFWS Form

CCSWS Style

CCTWS Type

PMW

CCUWS Unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Size code

0320

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT32290105

FamilyProducts

Clamping block SBN

HAND Cutting direction

R - Right

HF Functional height

8.4 mm

ID Technical product number

5009207

Interface codes

J6 / J61

ISO

VKT01A3229$$$$

ISYC Subclass

401-02 - Converter, stationary

KAP Kappa

0 Degree

LF Functional length

114 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

PMW Prism mounting WOHLHAUPTER

LOC-01 CCUWS Unit base

8 non-dimensional size

LOC-01 CZCWS Size code

0320

LOC-01 ISO

PMW01C0320****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

PMW03200185

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

PMW Prism mounting WOHLHAUPTER

LOC-02 CCUWS Unit base

8 non-dimensional size

LOC-02 CZCWS Size code

0320

LOC-02 ISO

PMW01C032L****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

PMW032L0185

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

3229

LOC-03 ISO

VKT01A3229$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32290105

LPR Protruding length

120 mm

Name Identifying order number

SBN3229-32-K

OAH Overall height

48 mm

OAL Overall length

120 mm

OAW Overall width

44.5 mm

RADH Radial height

2 mm

WF Functional width

60 mm

WT Weight of item

1.3 kg
