Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary RBH2580N

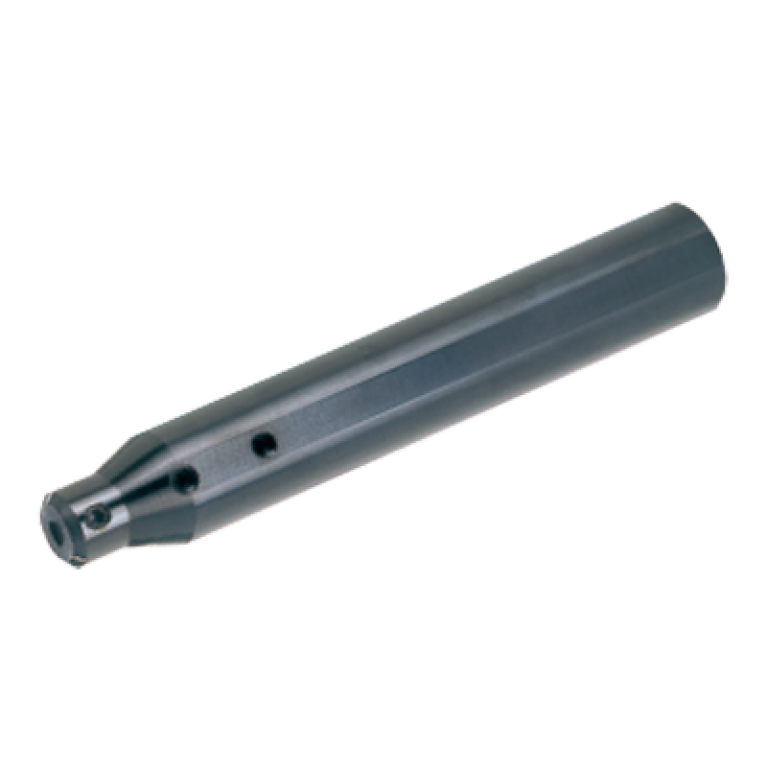

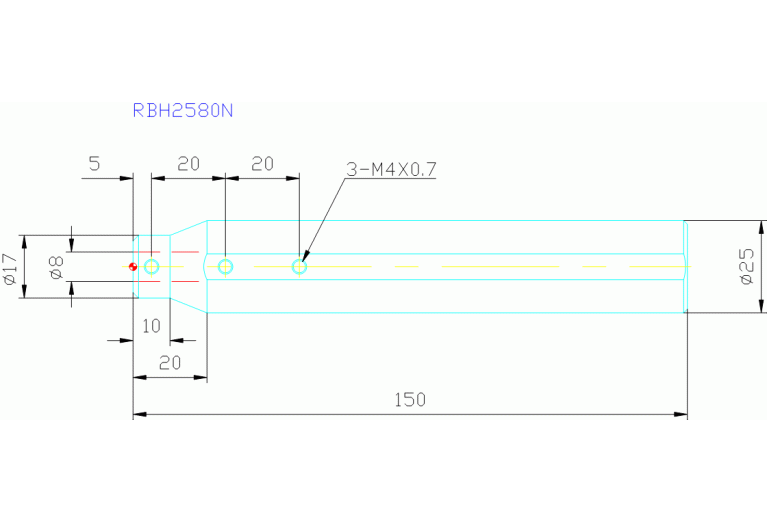

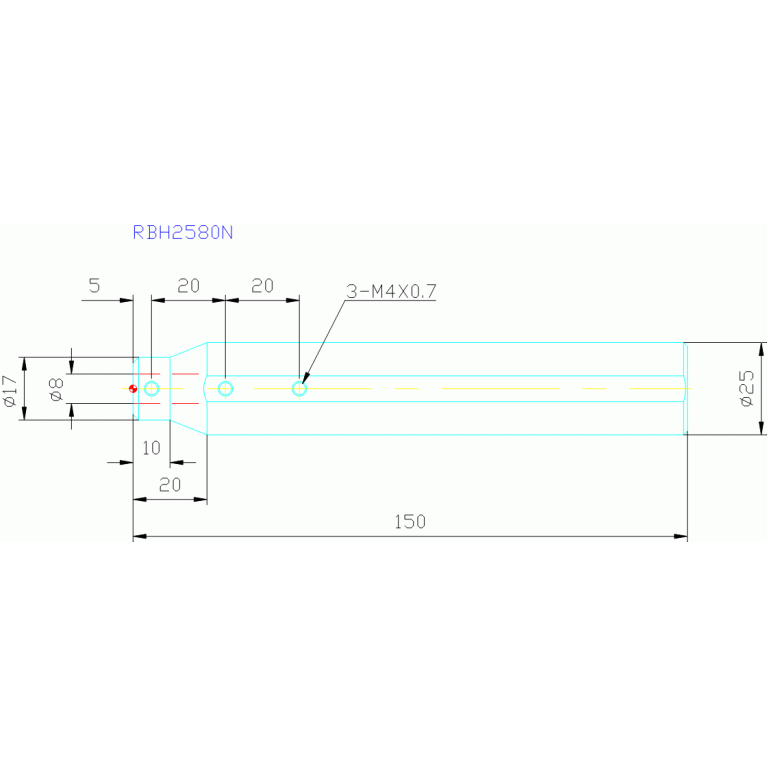

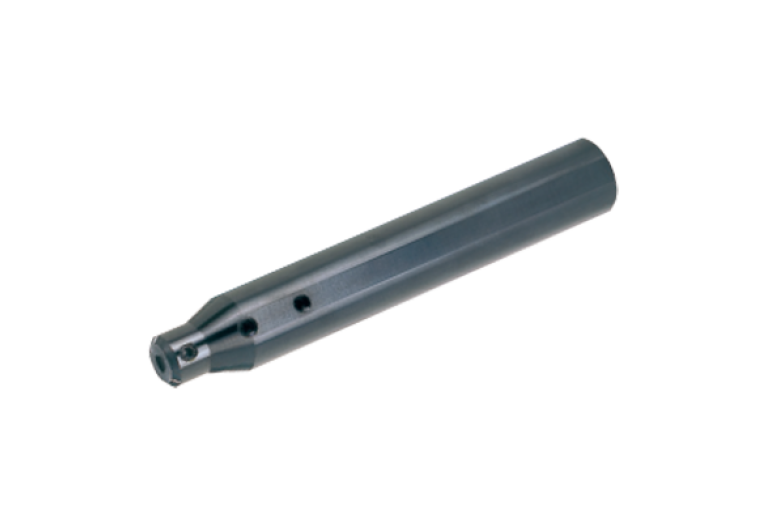

RBH2580N

Артикул: 492615

В наличии

В корзину

Описание

Характеристики

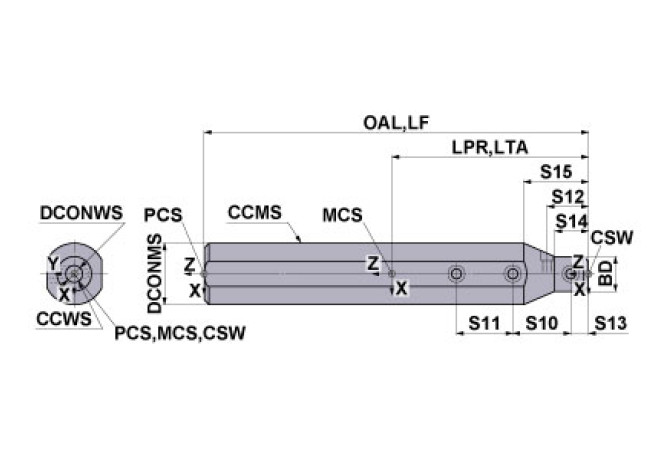

BD Body diameter

17 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0080

DCONWS Diameter

8 mm

Delivery state valid from

4/1/2022

DIN

ZYL02500105

FamilyProducts

spare parts

HAND Cutting direction

N - Neutral

ID Technical product number

492615

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LF Functional length

150 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0080

LOC-01 DCONWS Diameter

8 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00802205

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500105

Name Identifying order number

RBH2580N

OAL Overall length

150 mm
