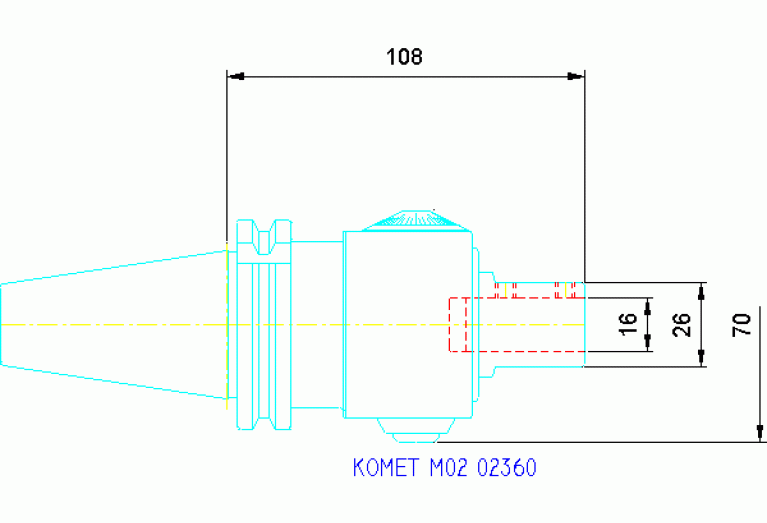

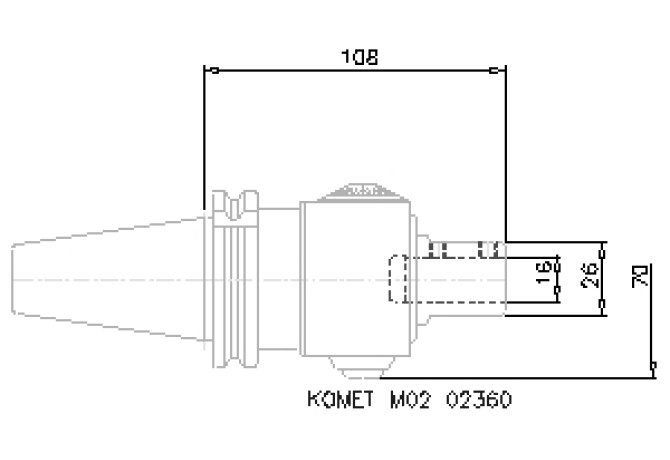

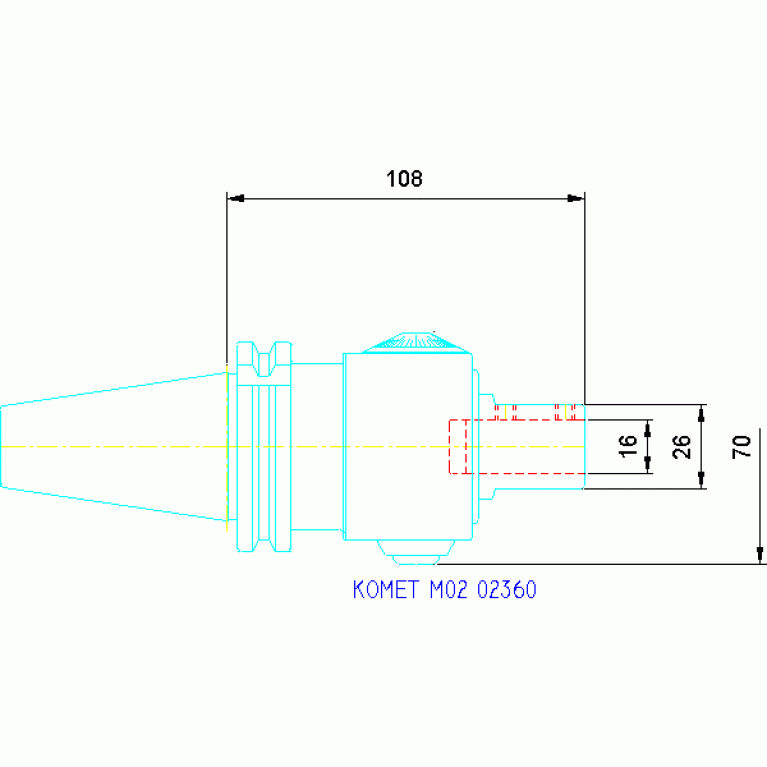

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary M02 02360

M02 02360

M02 02360 M02 02360 M02 02360

M02 02360

Komet Group
Артикул: 1480357
В наличии
В корзину
Описание
Характеристики
BD Body diameter
26 mm
BD Body diameter 2
70 mm
CCFWS Connection code form
22
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
SKG04001795
FamilyProducts
Feinverstellkopf M020
HAND Cutting direction
N - Neutral
ID Technical product number
1480357
Interface codes
J6 /
ISYC Subclass
401-02 - Converter, stationary
LB Body length 1
27 mm
LOC-01 CCFWS Connection code form
22
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01602215
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001795
LPR Protruding length
108 mm
LSCN Clamping length minimum
0 mm
Name Identifying order number
M02 02360
OAL Overall length
176.4 mm
Rotation Rotation indicator
0 - stationary tool
WT Weight of item
2.08 kg
