Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary H63TH-EV2525R-112

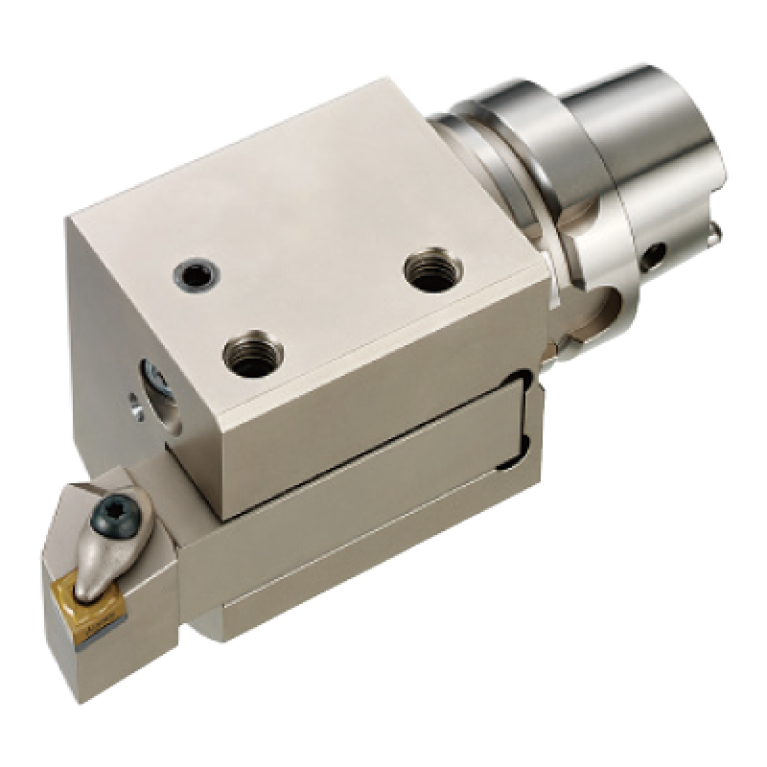

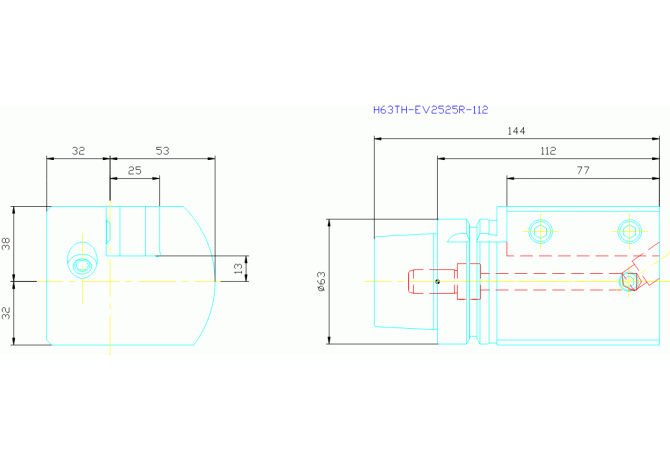

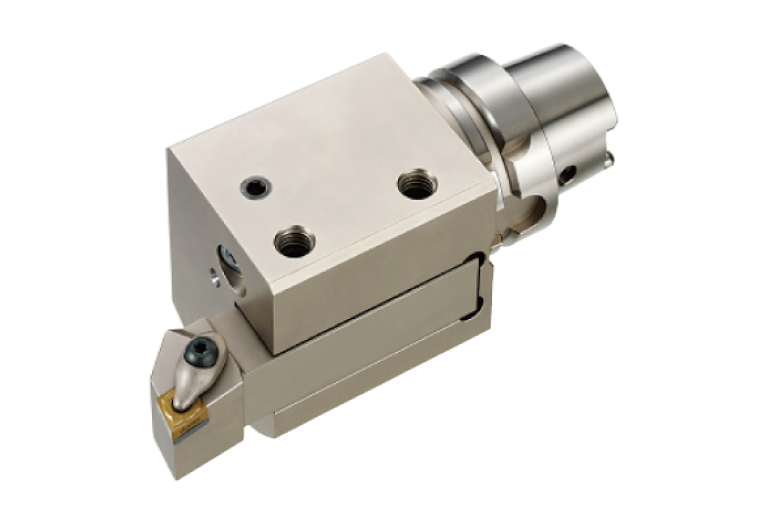

H63TH-EV2525R-112

H63TH-EV2525R-112 H63TH-EV2525R-112 H63TH-EV2525R-112 H63TH-EV2525R-112

H63TH-EV2525R-112

Mitsubishi Materials
Артикул: 325307
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
VKT
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
2525
Delivery state valid from
4/1/2022
DIN
HSK06300195
FamilyProducts
spare parts
HAND Cutting direction
R - Right
HF Functional height
25 mm
ID Technical product number
325307
Interface codes
J6 /
ISYC Subclass
401-02 - Converter, stationary
LB Body length 1
112 mm
LF Functional length
150 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
VKT Square mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
2525
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
VKT25250115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LSCX Clamping length maximum
77 mm
Name Identifying order number
H63TH-EV2525R-112
OAL Overall length
150 mm
WT Weight of item
3.9 kg
