Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary H63TH-B16-75

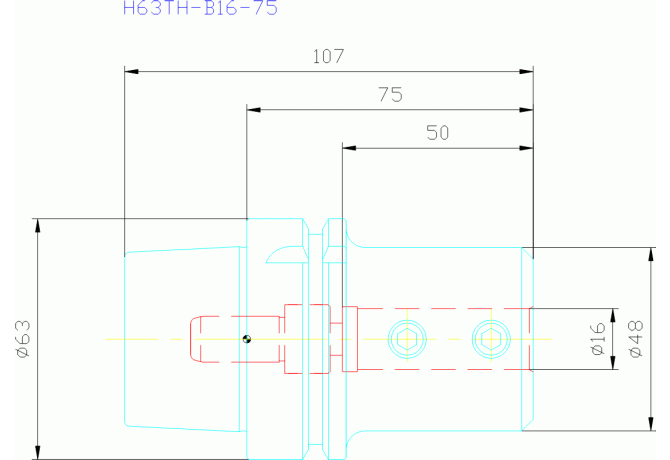

H63TH-B16-75

Артикул: 322190

В наличии

В корзину

Описание

Характеристики

BD Body diameter

48 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0160

DCONWS Diameter

16 mm

Delivery state valid from

4/1/2022

DIN

HSK06300195

FamilyProducts

spare parts

HAND Cutting direction

N - Neutral

ID Technical product number

322190

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LB Body length 1

50 mm

LF Functional length

75 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0160

LOC-01 DCONWS Diameter

16 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01602215

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LSCX Clamping length maximum

50 mm

Name Identifying order number

H63TH-B16-75

OAL Overall length

75 mm

WT Weight of item

1.3 kg
