Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary H100TH-EN3232L-130

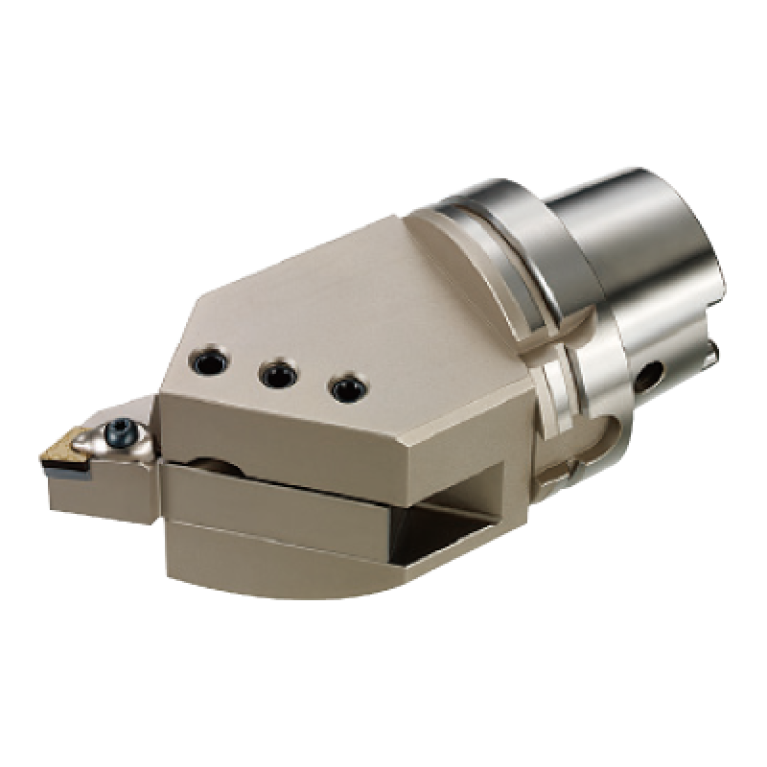

H100TH-EN3232L-130

H100TH-EN3232L-130 H100TH-EN3232L-130 H100TH-EN3232L-130 H100TH-EN3232L-130

H100TH-EN3232L-130

Mitsubishi Materials
Артикул: 436613
В наличии
В корзину
Описание
Характеристики

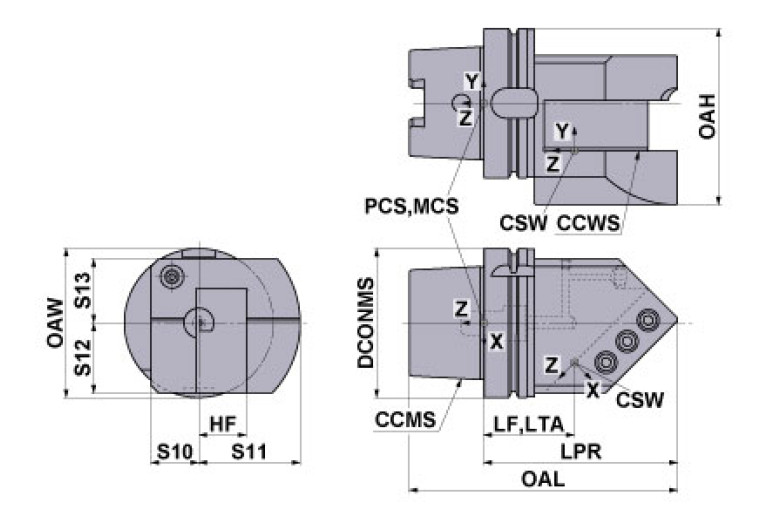

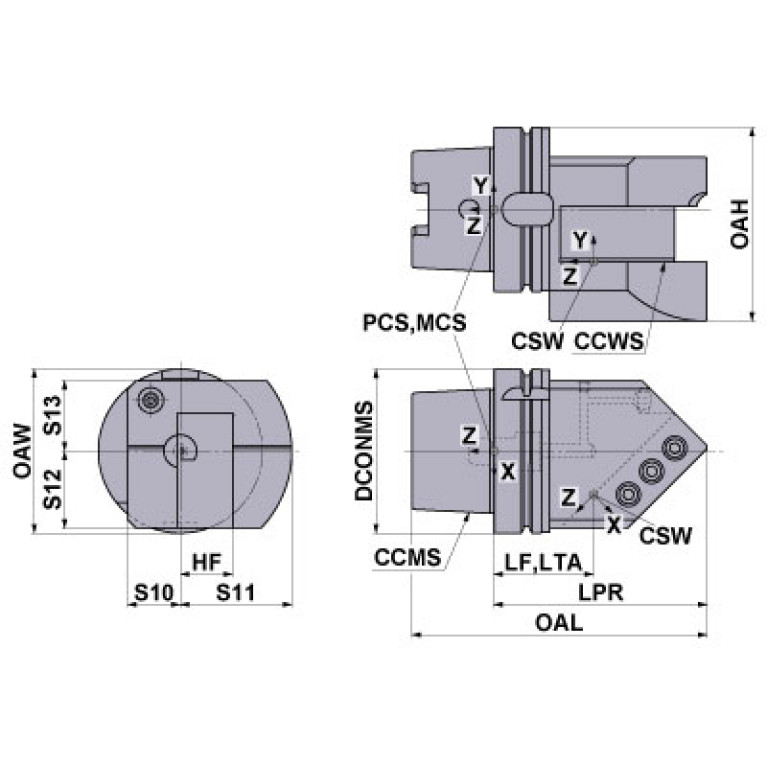

CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
VKT
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
3232
Delivery state valid from
4/1/2022
DIN
HSK10000195
FamilyProducts
spare parts
HAND Cutting direction
L - Left
HF Functional height
32 mm
ID Technical product number
436613
Interface codes
J6 /
ISYC Subclass
401-02 - Converter, stationary
LB Body length 1
130 mm
LF Functional length
110 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
VKT Square mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
3232
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
VKT32320115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
100 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
Name Identifying order number
H100TH-EN3232L-130
OAL Overall length
110 mm
WT Weight of item
6.6 kg
