Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary C3-LC2085-19081-12M

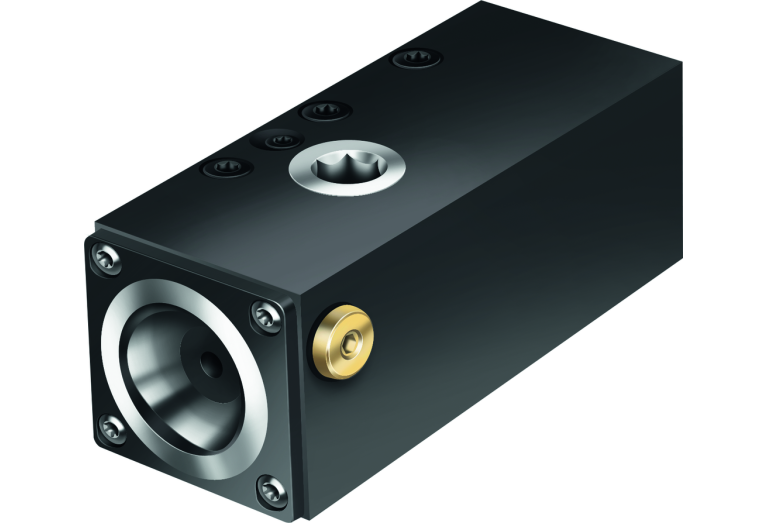

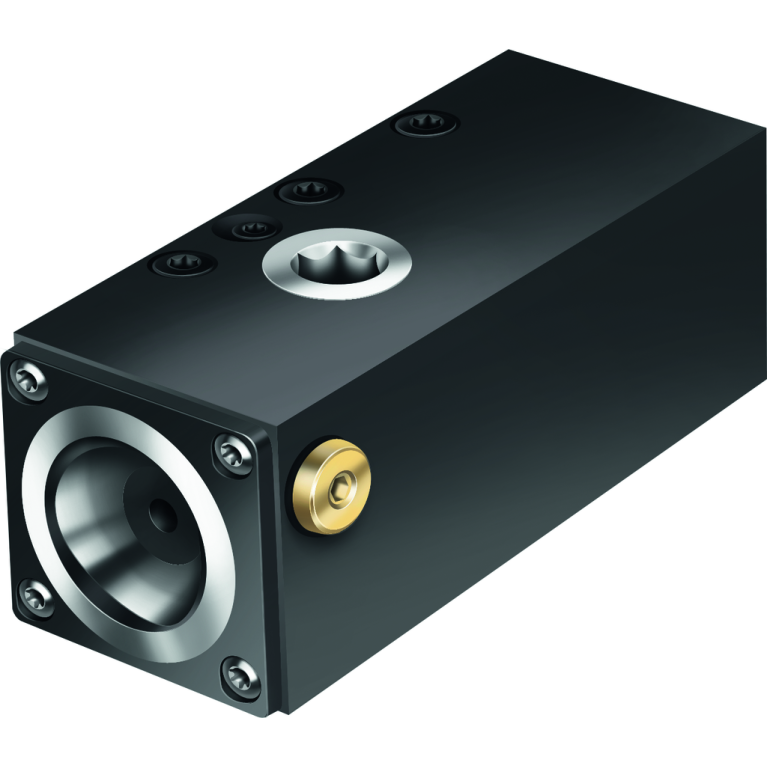

C3-LC2085-19081-12M

C3-LC2085-19081-12M C3-LC2085-19081-12M C3-LC2085-19081-12M

C3-LC2085-19081-12M

Walter
Артикул: 5051406
В наличии
В корзину
Описание
Характеристики
CCFWS Form
02
CCSWS Style
5
CCTWS Type
CCS
CCUWS Unit base
9
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
W - Walter
CXSC Coolant exit style code
2 - With Coolant exit, radial
CZCWS Size code
0320
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT24120135
FamilyProducts
Clamping units Typ 2080 / 2085
HAND Cutting direction
L - Left
HF Functional height
19.05 mm
ID Technical product number
5051406
Interface codes
J6 / J61
ISO
VKT01B2412$$$$
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
0 Degree
LF Functional length
80.75 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0320
LOC-01 ISO
CCS02C0320****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS03200295
LOC-02 CCFWS Form
02
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-02 CCUWS Unit base
9 non-dimensional size with coolant
LOC-02 CZCWS Size code
0320
LOC-02 ISO
CCS01C0320****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CCS03200195
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
2412
LOC-03 ISO
VKT01B2412$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT24120135

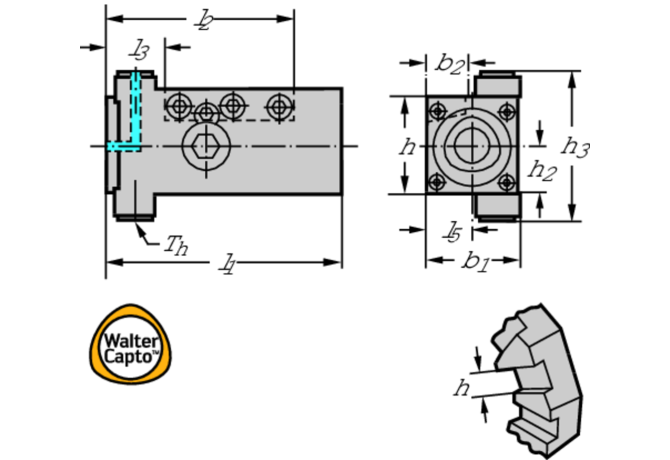

LPR Protruding length
80.75 mm
Name Identifying order number
C3-LC2085-19081-12M
OAH Overall height
63 mm
OAL Overall length
80.75 mm
OAW Overall width
38 mm
STDNO Standard
ISO26623-2
WF Functional width
19 mm
WT Weight of item
1.22 kg
