Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary A2121-V50-25L-100-P

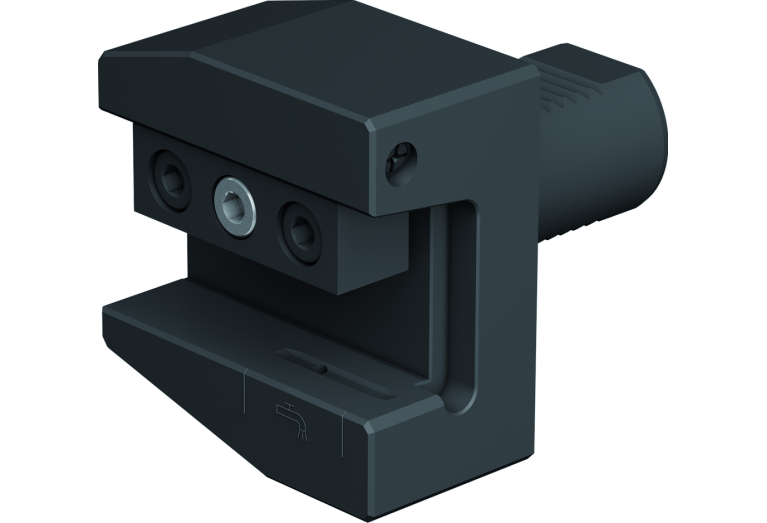

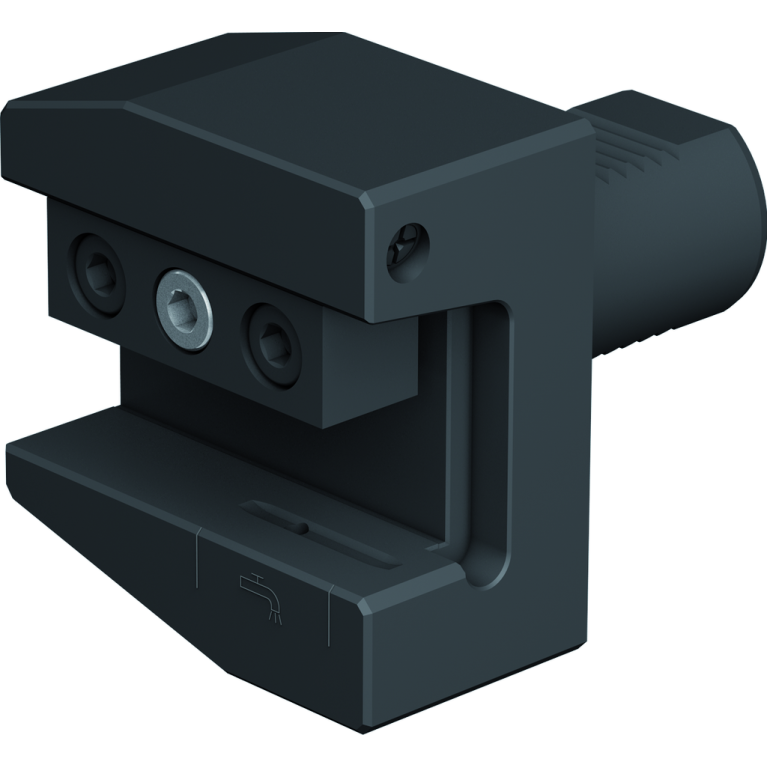

A2121-V50-25L-100-P

Артикул: 6787726

В наличии

В корзину

Описание

Характеристики

CCFWS Form

CCSWS Style

CCTWS Type

VKT

CCUWS Unit base

CNSC Coolant entry style code

6 - With coolant supply (discharge), peripheral/decentralized via flange

COMPC Company code

W - Walter

CXSC Coolant exit style code

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CZCWS Size code

2516

DCONXWS Connection diameter max

252.7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYV05000195

FamilyProducts

VDI adaptor – shank tools A2121-V...-P

HAND Cutting direction

L - Left

HF Functional height

25 mm

ID Technical product number

6787726

Interface codes

J6 / J61

ISO

ZYV01C0500$$$$

ISYC Subclass

401-02 - Converter, stationary

KAP Kappa

0 Degree

LF Functional length

23 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

VKT Square mounting

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

2516

LOC-01 DCONXWS Connection diameter max

252.7 mm

LOC-01 ISO

VKT01A2516****VKT01A2527****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT25160115VKT25270115

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

ZYV01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV05000195

LPR Protruding length

48 mm

LS Shank length

78 mm

Name Identifying order number

A2121-V50-25L-100-P

OAH Overall height

110 mm

OAL Overall length

123 mm

OAW Overall width

100 mm

RADH Radial height

55 mm

RADW Radial width

50 mm

WF Functional width

50 mm

WT Weight of item

4.345 kg
