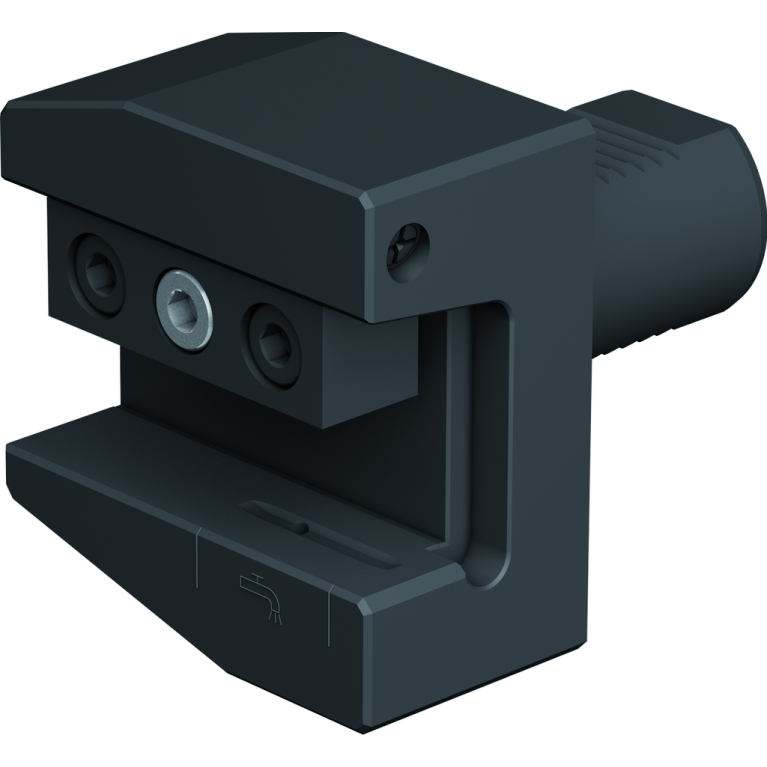

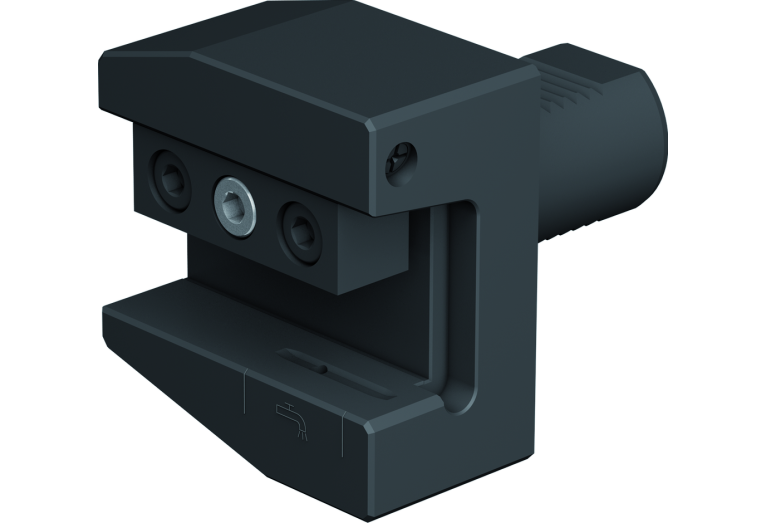

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary A2121-V30-20R-070-P

A2121-V30-20R-070-P

Артикул: 6787721

В наличии

В корзину

Описание

Характеристики

CCFWS Form

CCSWS Style

CCTWS Type

VKT

CCUWS Unit base

CNSC Coolant entry style code

6 - With coolant supply (discharge), peripheral/decentralized via flange

COMPC Company code

W - Walter

CXSC Coolant exit style code

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CZCWS Size code

2012

DCONXWS Connection diameter max

202.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYV03000195

FamilyProducts

VDI adaptor – shank tools A2121-V...-P

HAND Cutting direction

R - Right

HF Functional height

20 mm

ID Technical product number

6787721

Interface codes

J6 / J61

ISO

ZYV01C0300$$$$

ISYC Subclass

401-02 - Converter, stationary

KAP Kappa

0 Degree

LF Functional length

15.5 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

VKT Square mounting

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

2012

LOC-01 DCONXWS Connection diameter max

202.2 mm

LOC-01 ISO

VKT01A2012****VKT01A2022****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT20120115VKT20220115

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0300

LOC-03 DCONMS Diameter

30 mm

LOC-03 ISO

ZYV01C0300$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV03000195

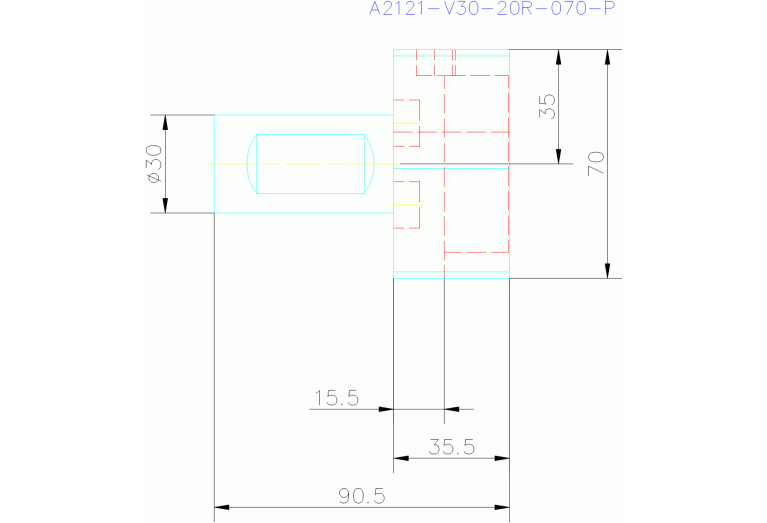

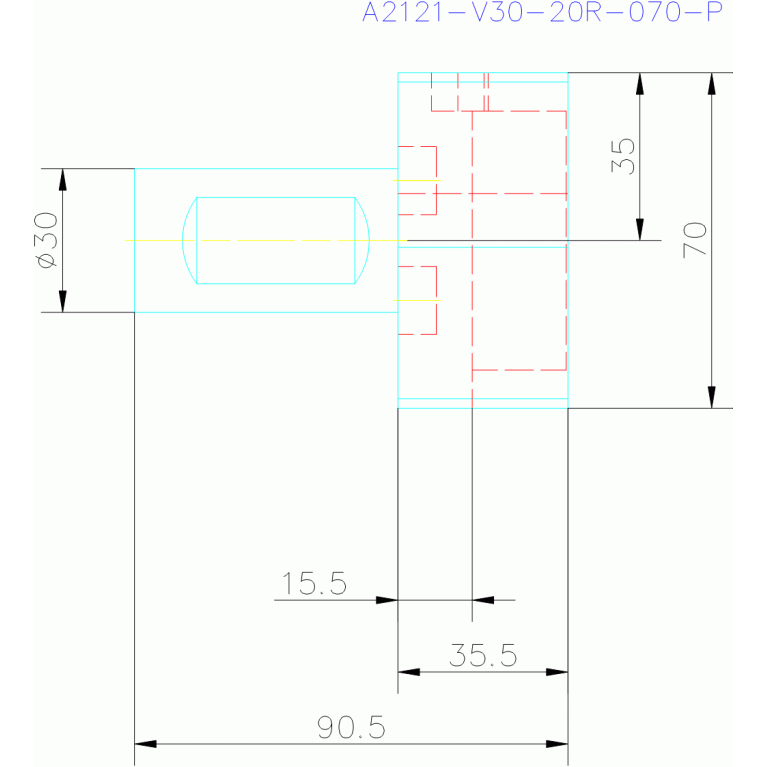

LPR Protruding length

35.5 mm

LS Shank length

55 mm

Name Identifying order number

A2121-V30-20R-070-P

OAH Overall height

73 mm

OAL Overall length

90.5 mm

OAW Overall width

70 mm

RADH Radial height

38 mm

RADW Radial width

35 mm

WF Functional width

35 mm

WT Weight of item

1.341 kg
