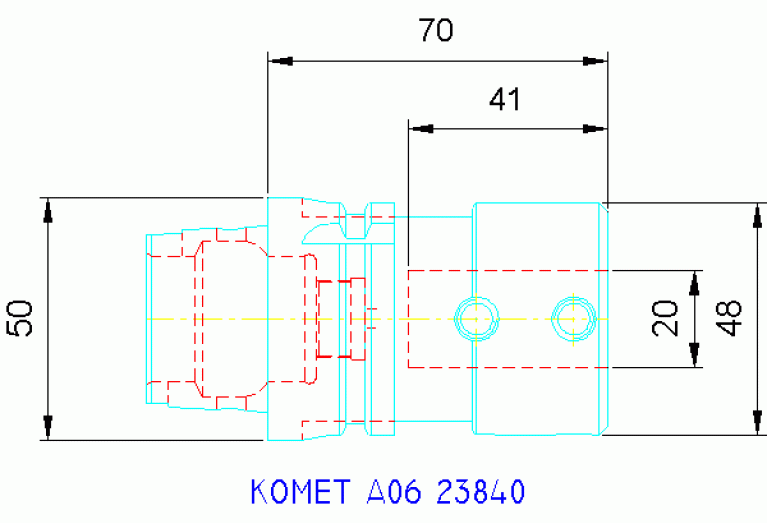

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary A06 23840

A06 23840

Артикул: 1482558

В наличии

В корзину

Описание

Характеристики

BD Body diameter

48 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0200

DCONWS Diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DF Flange diameter

50 mm

DIN

HSK05000195

FamilyProducts

Bohrstangenaufnahme Ø20

HAND Cutting direction

N - Neutral

ID Technical product number

1482558

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LB Body length 1

44 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0200

LOC-01 DCONWS Diameter

20 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02002215

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK05000195

LPR Protruding length

70 mm

LSCN Clamping length minimum

0 mm

LSCX Clamping length maximum

41 mm

Name Identifying order number

A06 23840

OAL Overall length

95 mm

Rotation Rotation indicator

0 - stationary tool

STDNO Standard

DIN69893-1

WT Weight of item

0.9 kg
