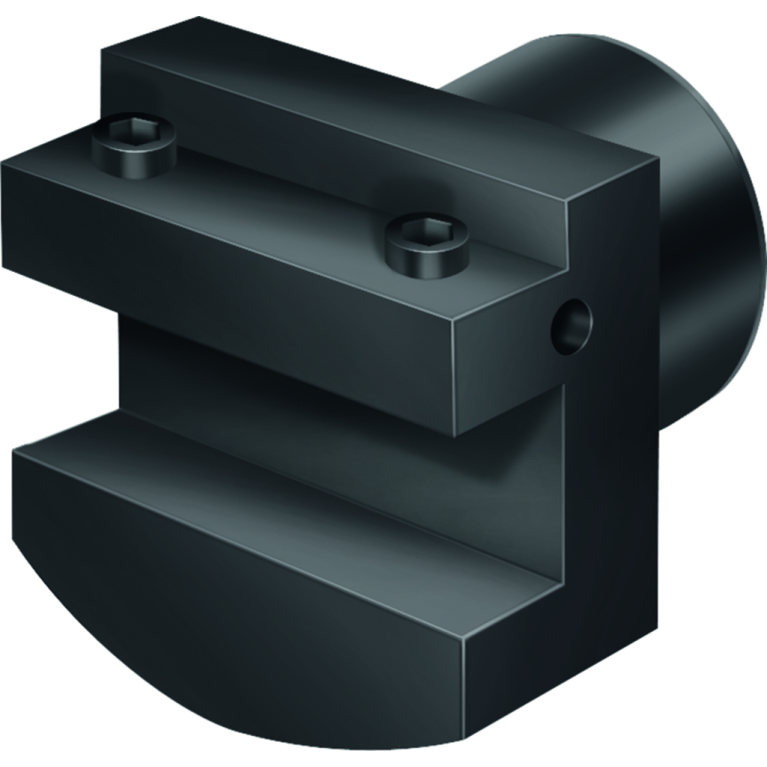

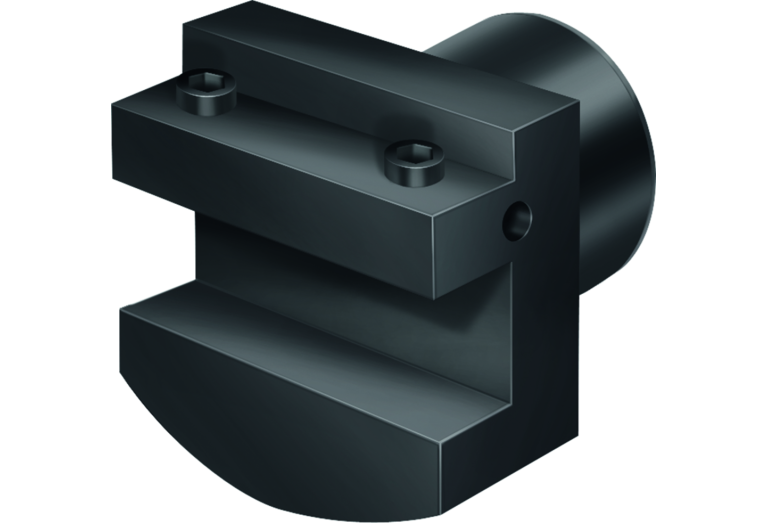

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary C6-ASHA-38060-20M

C6-ASHA-38060-20M

Артикул: 5893073

В наличии

В корзину

Описание

Характеристики

BD Body diameter

46 mm

CCFWS Form

CCSWS Style

CCTWS Type

VKT

CCUWS Unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CZCWS Size code

2012

DCONXWS Connection diameter max

202.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS06300195

FamilyProducts

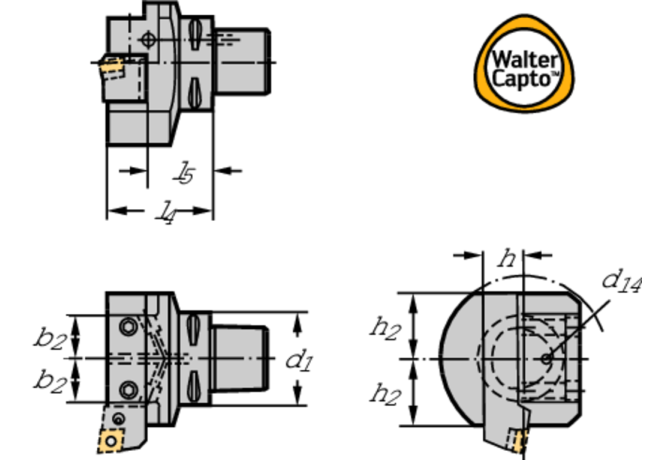

Radial adaptor C.-ASHA

HAND Cutting direction

N - Neutral

HF Functional height

20 mm

ID Technical product number

5893073

Interface codes

J6 / J61

ISO

CCS01C0630$$$$

ISYC Subclass

401-02 - Converter, stationary

KAP Kappa

0 Degree

LF Functional length

40 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

VKT Square mounting

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

2012

LOC-01 DCONXWS Connection diameter max

202.2 mm

LOC-01 ISO

VKT01A2012****VKT01A2022****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT20120115VKT20220115

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03 ISO

CCS01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR Protruding length

60 mm

Name Identifying order number

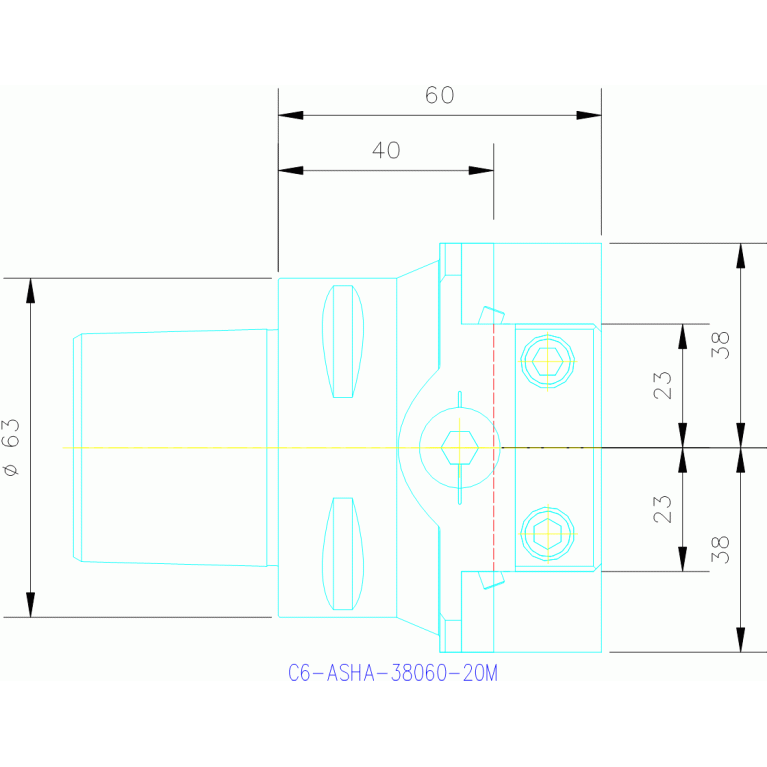

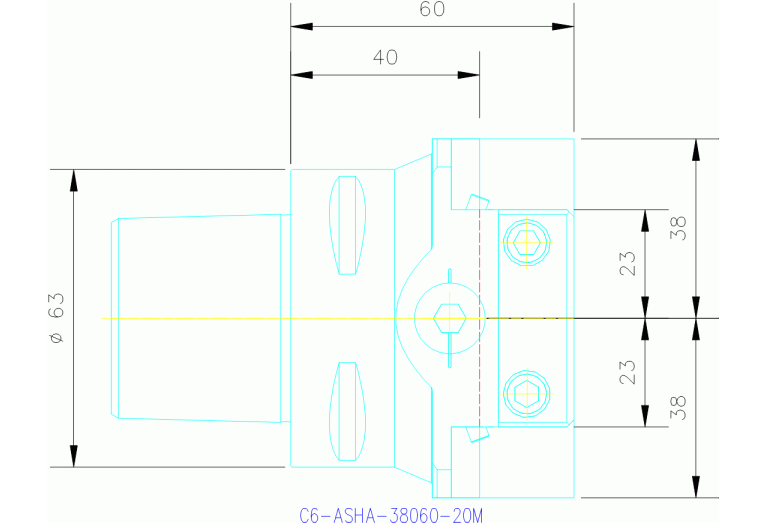

C6-ASHA-38060-20M

OAH Overall height

76.6 mm

OAL Overall length

98 mm

OAW Overall width

23 mm

RADH Radial height

45 mm

RADW Radial width

38 mm

STDNO Standard

ISO26623-1

WF Functional width

38 mm

WT Weight of item

1.782 kg
