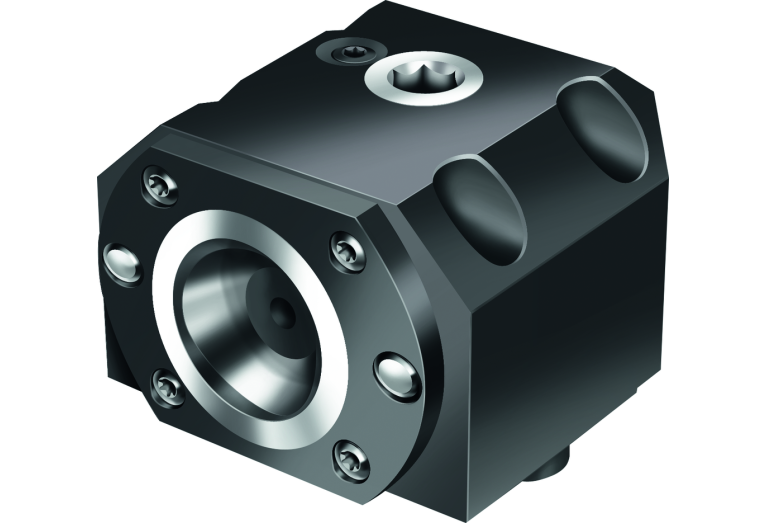

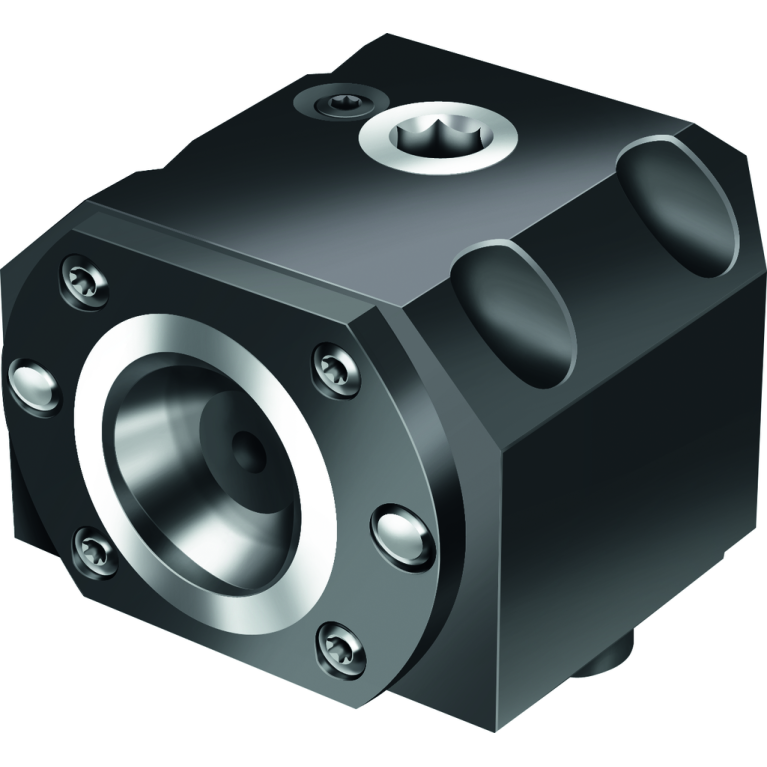

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary C8-LC2090-50088

C8-LC2090-50088

Артикул: 5887251

В наличии

В корзину

Описание

Характеристики

CCFWS Form

CCSWS Style

CCTWS Type

CCS

CCUWS Unit base

CNSC Coolant entry style code

6 - With coolant supply (discharge), peripheral/decentralized via flange

COMPC Company code

W - Walter

CXSC Coolant exit style code

2 - With Coolant exit, radial

CZCWS Size code

0800

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

FLC32921095

FamilyProducts

Clamping units TYP 2090

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

5887251

Interface codes

J6 / J61

ISO

FLC10C3292$$$$

ISYC Subclass

401-02 - Converter, stationary

KAP Kappa

0 Degree

LB Body length 1

100 mm

LF Functional length

50 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0800

LOC-01 ISO

CCS01C0800****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS08000195

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-02 CCUWS Unit base

9 non-dimensional size with coolant

LOC-02 CZCWS Size code

0800

LOC-02 ISO

CCS02C0800****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS08000295

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

FLC Flange mounting SANDVIK Coromant

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

3292

LOC-03 DCONMS Diameter

80 mm

LOC-03 ISO

FLC10C3292$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FLC32921095

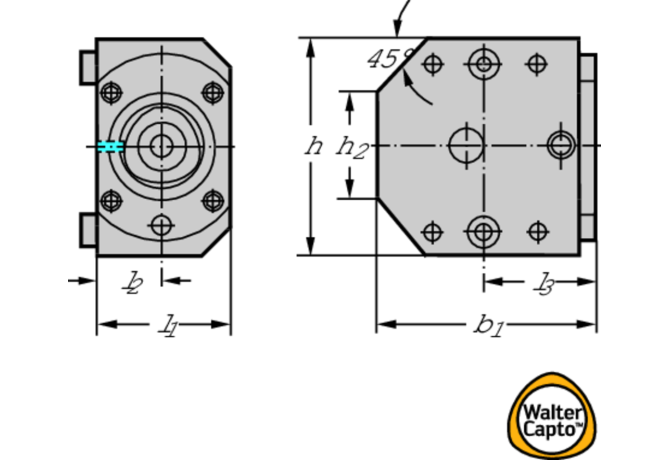

LPR Protruding length

100 mm

Name Identifying order number

C8-LC2090-50088

OAH Overall height

133 mm

OAL Overall length

100 mm

OAW Overall width

146 mm

STDNO Standard

ISO26623-2

WF Functional width

88 mm

WT Weight of item

13.18 kg
