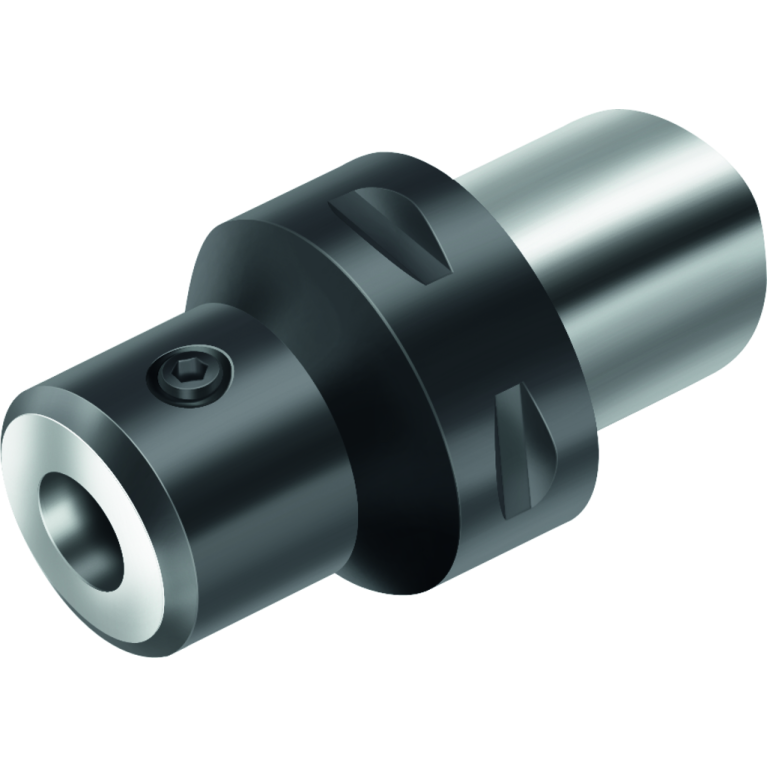

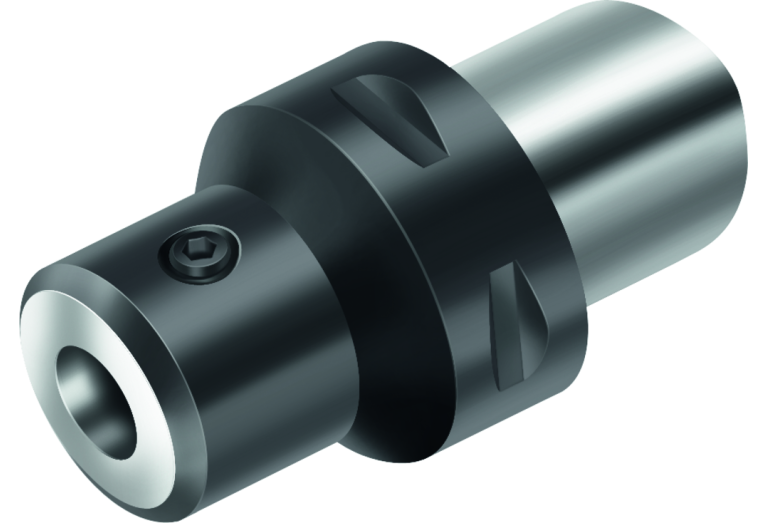

Главная Каталог продукции Toolunited 15 401-02 - Converter, stationary C4-131-00091-1000

C4-131-00091-1000

C4-131-00091-1000 C4-131-00091-1000 C4-131-00091-1000

C4-131-00091-1000

Walter
Артикул: 5029340
В наличии
В корзину
Описание
Характеристики
BD Body diameter
58 mm
CCFWS Form
22
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
1000
DCONWS Diameter
25.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS04000195
FamilyProducts
Toolholder for ISO boring bars C.-131
ID Technical product number
5029340
Interface codes
J6 / J61
ISO
CCS01C0400$$$$
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
0 Degree
LB Body length 1
50.038 mm
LF Functional length
70.104 mm
LOC-01 CCFWS Form
22
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
3 Inch with coolant
LOC-01 CZCWS Size code
1000
LOC-01 DCONWS Diameter
25.4 mm
LOC-01 ISO
ZYL22S1000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL10002235
LOC-02 CCFWS Form
22
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
3 Inch with coolant
LOC-02 CZCWS Size code
1000
LOC-02 DCONWS Diameter
25.4 mm
LOC-02 ISO
ZYL22G2540****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL02542215
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LPR Protruding length
70.104 mm
Name Identifying order number
C4-131-00091-1000
OAL Overall length
94.104 mm
RPMX Rotational speed maximum
39000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
1.34 kg
